Hakko

FM-206 Three-Port Rework Station

American Hakko's FM-206 three-port rework station raises performance standards for rework systems to another level

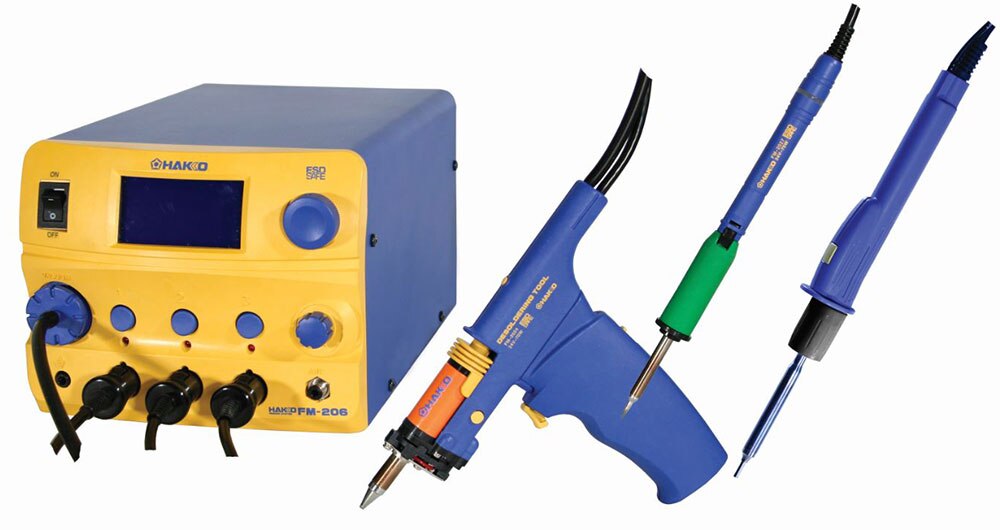

Image of Hakko's FM-206 Three-Port Rework StationWith the capability to power any FM series American Hakko handpiece, the FM-206 can be tailored to fit the user's specific rework needs. The FM-206 three-port rework station has a sleek, compact design that minimizes loss of bench space while maximizing the accuracy and efficiency of an operator utilizing the various handpieces. The powerful ports allow for the use of the Hakko FM-2029 single hot-air handpiece or simultaneous use of the Hakko FM-2030 heavy-duty soldering iron.

Note: Tips and nozzles are NOT included with station or any configuration

Features
  • Graphic user interface for easy setup and operation
  • Three simultaneously powered ports
  • Self-contained pump for vacuum and air flow
  • Digital airflow indicator
  • Configurable display in °C or °F
  • High-performance hot-air handpiece ramps up to max. temperature in < 20 secs
  • Capable of hot-air rework of 0201, 01005, and up to 10 mm x 10 mm QFNs
  • Meets or exceeds ANSI J-STD-001
  • Manual or automatic profile for hot air
  • Auto shutoff with sleep function
  • Passcode protected
  • Security lock to protect against theft or unauthorized re-location
  • Integrates with the Hakko FR-830, FR-870B, and FR-872 preheaters
  • Low-cost composite hot-air nozzles
  • Desoldering delay timer
  • Optional footswitch for pump operation
  • Option for external gas supply for hot air
  • ESD-safe by design

FM-206 Three-Port Rework Station

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
REWORK STATION 410W 3 CH 120VFM206-55REWORK STATION 410W 3 CH 120V0 - ImmediateSee Page for PricingView Details
SOLDER REWORK STA 410W 3 CH 120VFM206-DSASOLDER REWORK STA 410W 3 CH 120V7 - Immediate$3,084.89View Details
SOLDER REWORK STA 410W 3 CH 120VFM206-DSSSOLDER REWORK STA 410W 3 CH 120V10 - Immediate$2,686.06View Details
SOLDER REWORK STA 410W 3 CH 120VFM206-DTSSOLDER REWORK STA 410W 3 CH 120V4 - Immediate$2,904.32View Details
REWORK SOLDER STA 410W 3 CH 120VFM206-STAREWORK SOLDER STA 410W 3 CH 120V0 - ImmediateSee Page for PricingView Details

Handpieces

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
DESOLDERING TOOLFM2024-02DESOLDERING TOOL23 - Immediate$298.88View Details
DESOLDER SOLDR STA 70W 1 CH 120VFM2024-21DESOLDER SOLDR STA 70W 1 CH 120V6 - Immediate$792.72View Details
DESOLDERING TOOL 70W 24VFM2027-01DESOLDERING TOOL 70W 24V215 - Immediate$163.81View Details
DESOLDERING TOOL 70W 24VFM2027-02DESOLDERING TOOL 70W 24V147 - Immediate$151.61View Details
SOLDERING IRONFM2027-03SOLDERING IRON21 - Immediate$217.03View Details
SOLDERING IRON 140W 24VFM2030-02SOLDERING IRON 140W 24V9 - Immediate$301.53View Details
SOLDERING IRON 48W 24VFM2032-52SOLDERING IRON 48W 24V6 - Immediate$301.53View Details
DESOLDERING TWEEZERS 140W 24VFM2022-05DESOLDERING TWEEZERS 140W 24V7 - Immediate$450.31View Details
DESOLDERING TWEEZERS 140W 24VFM2023-02DESOLDERING TWEEZERS 140W 24V11 - Immediate$339.56View Details
DESOLDERING TWEEZERS 140W 24VFM2023-05DESOLDERING TWEEZERS 140W 24V28 - Immediate$516.11View Details
DESOLDERING TOOL 140W 24VFM2029-01DESOLDERING TOOL 140W 24V9 - Immediate$490.67View Details

Tips and Nozzles

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
NOZZLE,0.6MM,FM-2024N3-06NOZZLE,0.6MM,FM-202424 - Immediate$111.49View Details
NOZZLE,0.8MM,FM-2024N3-08NOZZLE,0.8MM,FM-202495 - Immediate$94.60View Details
NOZZLE,1.0MM,FM-2024N3-10NOZZLE,1.0MM,FM-2024392 - Immediate$94.60View Details
NOZZLE,1.3MM,FM-2024N3-13NOZZLE,1.3MM,FM-2024144 - Immediate$94.60View Details
NOZZLE,1.6MM,FM-2024N3-16NOZZLE,1.6MM,FM-2024113 - Immediate$94.60View Details
NOZZLE,2.0MM,FM-2024N3-20NOZZLE,2.0MM,FM-202450 - Immediate$94.60View Details
NOZZLE,2.3MM,FM-2024N3-23NOZZLE,2.3MM,FM-202443 - Immediate$94.60View Details
NOZZLE,EXTRA LONG,1.0MM,FM-2024N3-L10NOZZLE,EXTRA LONG,1.0MM,FM-202412 - Immediate$111.49View Details
TIP,BLADE,10.4MM LONG,FM-2027T15-1401TIP,BLADE,10.4MM LONG,FM-2027166 - Immediate$169.23View Details
TIP,BLADE,15.7MM LONG,FM-2027T15-1402TIP,BLADE,15.7MM LONG,FM-202764 - Immediate$169.23View Details

Preheater

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
PREHEATING PLATE 730W 120VFR870B-04PREHEATING PLATE 730W 120V36 - Immediate$1,684.64View Details
Published: 2017-06-28
