Slide 1 Slide 2 Slide 3 Slide 4 Slide 5 Slide 6 Slide 7 Slide 8 Slide 9 Slide 10 Slide 11 Slide 12 Product List
models

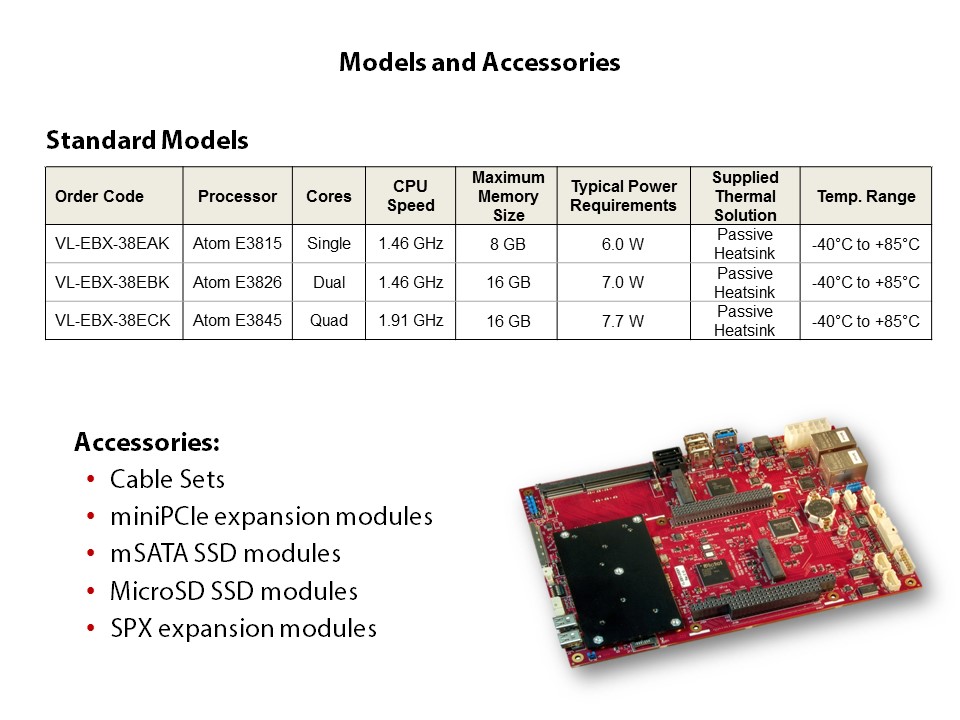

On this slide, the standard EBX-38 Viper models that are stocked at DigiKey are shown. There are three different memory/temperature range options. All models are available in full industrial temperature (-40º to +85ºC) range. The rugged Viper board meets MIL-STD-202G specifications for mechanical shock and vibration. Transient voltage suppression (TVS) devices on critical I/O ports provide enhanced electrostatic discharge (ESD) protection for the system. Also available from DigiKey are the common accessories to enable system development: Power supplies, cable kits, hard drives, Solid State Devices, and a number of expansion boards and modules.
PTM Published on: 2017-08-07
