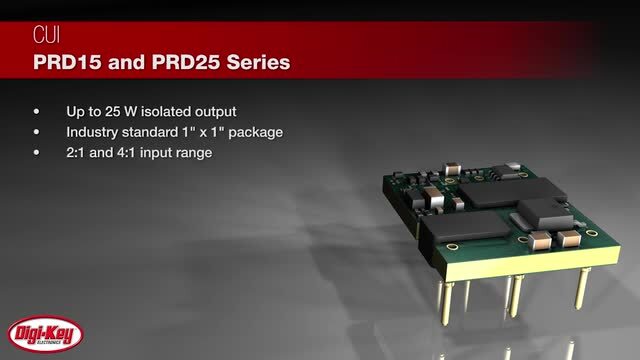

15 W and 25 W Isolated DC-DC Converters
Low-profile isolated modules with industry-standard 1" x 1" package from CUI
CUI’s PRD15 and PRD25 series are compact low-profile modules that output 15 W and 25 W of power respectively in a single square inch of board space. Available in through-hole and surface-mount versions, the converters’ industry-standard pin-outs make them ideal replacements for larger 1" x 2" modules. The PRD15 series features a 4:1 input voltage range of 9 VDC to 36 VDC or 18 VDC to 75 VDC, while the PRD25 series provides a 2:1 input voltage range from 36 VDC to 75 VDC. Both series offer high efficiency up to 91% and an operating temperature range from -40°C to 85°C, making them ideal for powering a wide range of applications.
| Features | ||
|
|
|
| Applications | ||
|
|
PRD15 Series 15 W Isolated DC-DC Converters
| Image | Manufacturer Part Number | Description | Type | Number of Outputs | Voltage - Input (Min) | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 |  | PRD15-Q24-S5-P-D | DC DC CONVERTER 5V 15W | Isolated Module | 1 | 9V | 0 - Immediate | $48.35 | View Details |
| | PRD15-Q48-S5-P-D | DC DC CONVERTER 5V 15W | Isolated Module | 1 | 18V | 0 - Immediate | $48.35 | View Details |
| | PRD15-Q48-S5-N-D | DC DC CONVERTER 5V 15W | Isolated Module | 1 | 18V | 0 - Immediate | $48.35 | View Details |
| | PRD15-Q24-S3-P-D | DC DC CONVERTER 3.3V 15W | Isolated Module | 1 | 9V | 0 - Immediate | $48.35 | View Details |
| | PRD15-Q24-S5-N-D | DC DC CONVERTER 5V 15W | Isolated Module | 1 | 9V | 0 - Immediate | $48.35 | View Details |
| | PRD15-Q48-S3-N-D | DC DC CONVERTER 3.3V 15W | Isolated Module | 1 | 18V | 0 - Immediate | $48.35 | View Details |
Published: 2016-05-19
