622-025-260-033 is available for purchase but is not normally stocked.
Available Substitutes:
Similar
Similar
Similar
Similar
Similar
Similar
Similar
Similar
Similar

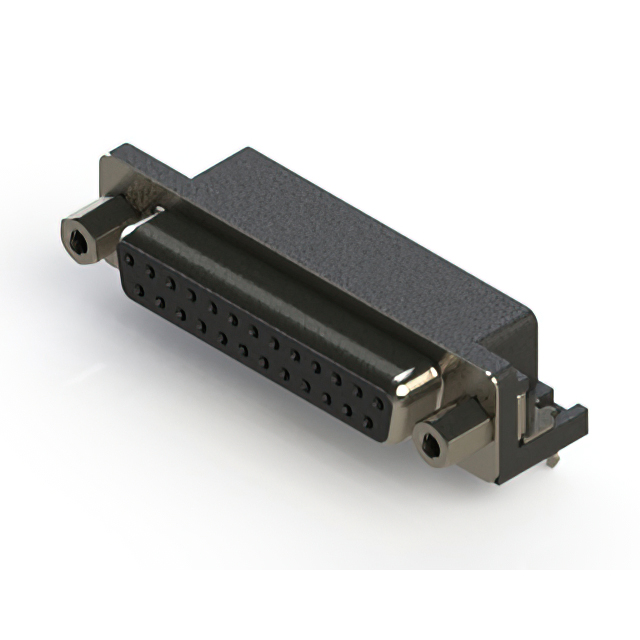

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
622-025-260-033 | ||
|---|---|---|
Digi-Key Part Number | 622-025-260-033-ND | |
Manufacturer | ||
Manufacturer Product Number | 622-025-260-033 | |
Description | CONN D-SUB RCPT 25POS R/A SLDR | |
Manufacturer Standard Lead Time | 18 Weeks | |
Detailed Description | 25 Position D-Sub Receptacle, Female Sockets Connector | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Bulk | |
Product Status | Active | |
Connector Style | ||
Connector Type | Receptacle, Female Sockets | |
Number of Positions | ||
Number of Rows | 2 | |
Mounting Type | ||
Shell Size, Connector Layout | 3 (DB, B) | |
Contact Type | Signal | |
Flange Feature | Mating Side, Female Screwlock (4-40) | |
Termination | Solder | |
Shell Material, Finish | Steel, Nickel Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | Flash | |
Ingress Protection | - | |
Material Flammability Rating | UL94 V-0 | |
Current Rating (Amps) | 3A per Contact | |
Backset Spacing | 0.318" (8.08mm) | |
Features | Board Lock, Mounting Brackets, Shielded | |
Voltage Rating | - | |
Color | Black | |
Contact Form | - | |
Dielectric Material | Polyester Thermoplastic | |
Wire Gauge | - | |
Contact Material | Copper Alloy | |
Operating Temperature | -55°C ~ 85°C | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | 621,622 Series Ordering Guide |
| Other Related Documents | Interconnect Solutions Brochure |
| Environmental Information | EDAC RoHS |
| CAD Models | 622-025-260-033.stp |
| HTML Datasheet | 622-025-260-033 Drawing |
| Product Drawings | 622-025-260-033 Drawing |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
Available To Order
All prices are in CAD
Bulk
| Qty | Unit Price | Ext Price |
|---|---|---|
| 250 | $2.27488 | $568.72 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Standard Package | 250 |
Substitutes (9)
| Part No. | Manufacturer | Quantity Available | Digi-Key Part No. | Unit Price | Substitute Type |
|---|---|---|---|---|---|
| 182-025-213R161 | NorComp Inc. | 51 | 182-725FE-ND | $4.58000 | Similar |
| A-DF 25 A/KG-T2S | Assmann WSW Components | 9,616 | AE10935-ND | $2.36000 | Similar |
| ID25S33E4GV00LF | Amphenol CS (FCI) | 220 | ID25S33E4GV00LF-ND | $2.99000 | Similar |
| FCE17-B25SA-450 | Amphenol CS (Commercial Products) | 34 | FCE17-B25SA-450-ND | $41.08000 | Similar |
| 182-025-213R561 | NorComp Inc. | 9,613 | 182-125FE-ND | $5.38000 | Similar |
