90 Series LED Panel Mount Indicator

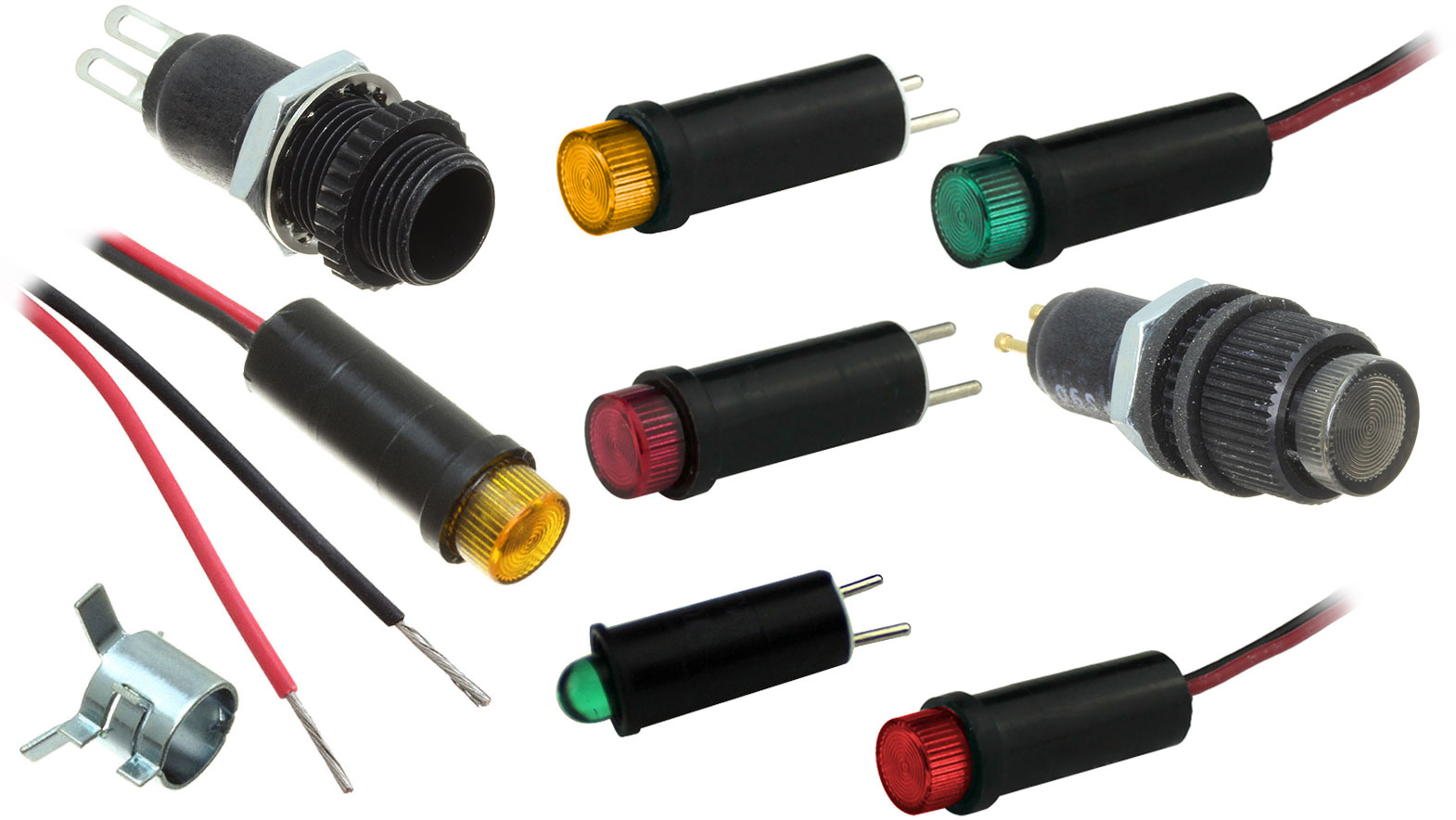

VCC's 0.290" LED panel mount indicator cartridge, bi-pin, and wire leads termination styles

Image of VCC's 90 Series LED Panel Mount IndicatorVCC's 90 series LED panel mount indicators offer superior construction, longer life, and watertight socket options for splashdown environments. They are available with cartridge, bi-pin, and wire lead termination styles for use with spring retainer clip, socket holder, or wiring plugs.

They are available with a variety of LEDs including AlInGaP and InGaN technology for high brightness applications, bi-color, and with integrated resistors, and are designed for quick installation in display panels to reduce overall cost due to less-frequent replacements.

They are offered with a variety of lens options (cylindrical, flush, dome, wide cylindrical, or wide flush), all featuring Fresnel pattern lenses which provide excellent light focus and assure maximum light output. A spring retainer clip secures uniform placement of the indicator to the panel and is ideal for high vibration environments. Watertight socket options for splashdown environments are also available.

Product Specifications
  • Prominent LED panel mount indicator
  • Panel hole diameter: 0.290" (7.37 mm)
  • Built-in LED can be used in DC circuits (2 VDC to 60 VDC) or 120 VAC circuits
  • Terminal styles: cartridge, bi-pin, and wire leads
  • Offered with a variety of LEDs
  • Single color: red, green, white, blue, amber, and orange
  • For use with socket holder (PS90 or PS90T; sold separately) or wiring plug (SH90 or CSH90; sold separately)
  • Seven lens colors available: red, amber, yellow, green, blue, water clear, and smoke
  • Available with no lens, cylindrical lens, flush lens, or dome lens
  • Black bezel offering to enhance LED contrast
  • Mounting hardware provided (spring retainer clip and washer)
  • Watertight socket options for splashdown environments
  • Bi-color: red/green
  • Compliant with RoHS and REACH requirements
Applications
  • Transportation
  • Industrial control displays
  • Aircraft

Panel Indicators, Pilot Lights

ImageManufacturer Part NumberDescriptionLamp ColorLens ColorRatingsAvailable QuantityView Details
PMI .290905-NWG120-OPMI .290" 120V NO LENS GREENGreenGreenAC32 - ImmediateView Details
PMI LED .29091W-NWA12H-CAOPMI LED .290" HI-HATAmberAmberDC39 - ImmediateView Details
PMI .29091W-NWG12H-CGOPMI .290" 12VDC NO LENS WIRE GREGreenGreenDC18 - ImmediateView Details
PMI .29091-NWA12H-CAOPMI .290" 12VDC HI-HAT PIN AMBERAmberAmberDC23 - ImmediateView Details
PMI LED .29091W-NWR12H-CROPMI LED .290" HI-HAT REDRedRedDC37 - ImmediateView Details
PMI .29091-NWA28H-CAOPMI .290" 28VDC HI-HAT PIN AMBERAmberAmberDC20 - ImmediateView Details
PMI .29091-NWG28H-CGOPMI .290" 28VDC HI-HAT PIN GREENGreenGreenDC50 - ImmediateView Details
PMI .29091-NWR28H-CROPMI .290" 28VDC HI-HAT PIN REDRedRedDC28 - ImmediateView Details

Accessories

ImageManufacturer Part NumberDescriptionAvailable QuantityView Details
PMI .290PS90T-L92-S-WTPMI .290" SOCKET TURRET TERM SMO25 - ImmediateView Details
PMI .290PS90PMI .290" SOCKET SOLDER TERMINAL10 - ImmediateView Details
PMI .290PS90-L92-NW-WTPMI .290" SOCKET SOLDER TERM WAT15 - ImmediateView Details
PMI .290PS90T-L92-NG-WTPMI .290" SOCKET TURRET TERM GRE24 - ImmediateView Details
