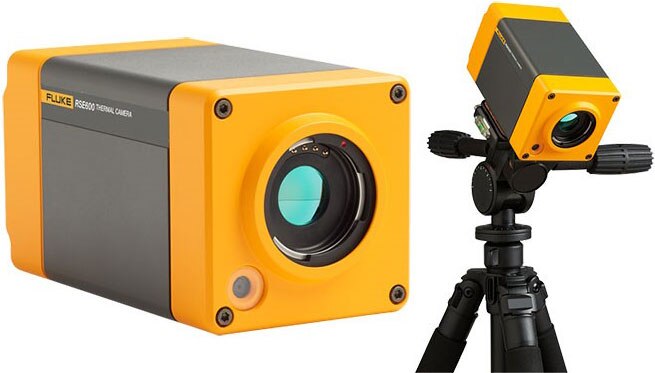

RSE300/RSE600 Mounted Infrared Cameras

Product Highlights > RSE300/RSE600 Mounted Infrared Cameras

            RSE300/RSE600 Mounted Infrared Cameras
                    Fluke's high-resolution infrared cameras for enhanced thermal detail in R&D applications


Fluke Electronic's RSE series IR cameras are fully radiometric, mounted IR cameras. With advanced features and software plug-ins to MATLAB® and LabVIEW® tools which are ideal for continuously streaming and analyzing infrared data.

Designed for research, science, and engineering needs, these IR cameras enhance testing and quality assurance procedures by mounting the RSE300 or RSE600 to a workstation. Sixty frames of data per second can be continuously streamed to a computer to monitor minute temperature differences and analyze videos frame-by-frame remotely from SmartView® desktop software. Viewing experience can be enhanced with optional add-on lenses to target different applications (analyzing from a distance or getting the close-up details).

Included
Infrared camera with standard infrared lens RSE300 320 x 240 image resolution RSE600 640 x 480 image resolution AC power supply		Ethernet cable Antenna Available by free download: SmartView® desktop software, MATLAB toolbox, LabVIEW toolbox
Features
MATLAB and LabVIEW software compatibility allows users to integrate infrared data, images, and videos to support R&D analysis See the details needed with optional smart lenses: 2x and 4x telephoto, wide angle, and macro lenses		Optimize images, generate customizable reports, and export images to a chosen format with SmartView desktop software Wirelessly connect a camera to the Fluke Connect® system to easily share and edit images

RSE300 and RSE600 Infrared Cameras

	Image	Manufacturer Part Number	Description	Available Quantity	Price	View Details
		RSE300 60 HZ	RSE300 IR CAMERA (320X240 RES)	0 - Immediate	See Page for Pricing	View Details
		RSE600 60 HZ	RSE600 IR CAMERA (640X480 RES)	0 - Immediate	See Page for Pricing	View Details
