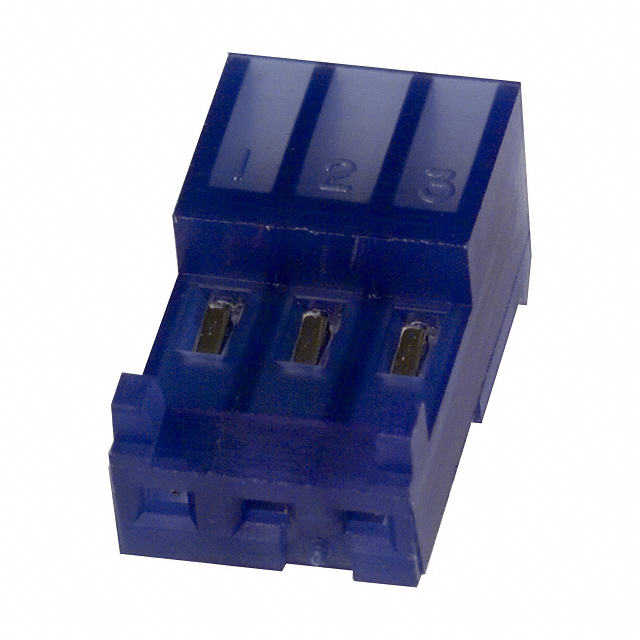

3-643815-3 | ||
|---|---|---|
Digi-Key Part Number | A31025-ND | |
Manufacturer | ||
Manufacturer Product Number | 3-643815-3 | |
Description | CONN RCPT 3POS IDC 26AWG TIN | |
Manufacturer Standard Lead Time | 42 Weeks | |
Detailed Description | 3 Position Rectangular Receptacle Connector IDC Tin 26 AWG | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | 3-643815-3 Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | TE Connectivity AMP Connectors | |
Series | ||
Package | Bulk | |
Product Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 3 | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Free Hanging (In-Line), Right Angle | |
Fastening Type | Locking Ramp | |
Cable Termination | IDC | |
Wire Type | Discrete or Ribbon Cable | |
Wire Gauge | 26 AWG | |
Features | Closed End | |
Contact Finish | Tin | |
Contact Finish Thickness | 80.0µin (2.03µm) | |
Color | Blue | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | 3-643815-3 |
| Environmental Information | 3-643815-3 Statement of Compliance |
| Featured Product | MTA Connectors |
| PCN Design/Specification | |
| PCN Assembly/Origin | Manufacturing location change 27/JAN/2023 |
| PCN Packaging | |
| HTML Datasheet | 643815 Drawing |
| EDA Models | 3-643815-3 Models |
| 3D Drawings | 3-643815-3.pdf |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
