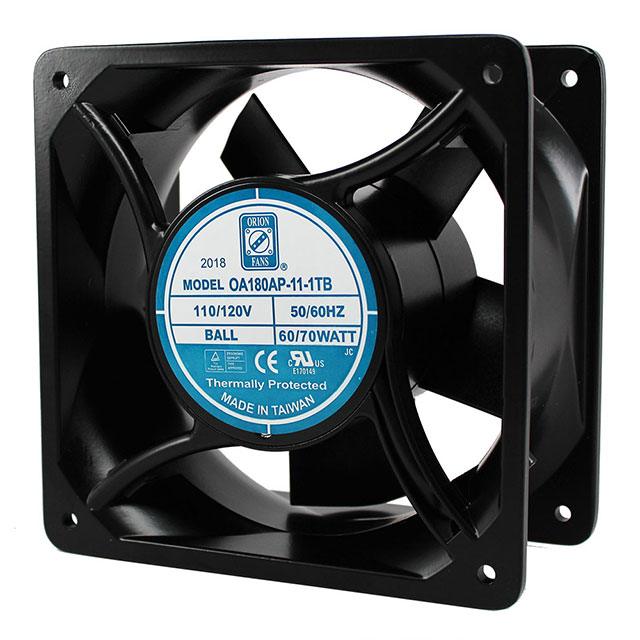

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
OA180AP-11-1TB | ||
|---|---|---|
Digi-Key Part Number | 1053-1048-ND | |
Manufacturer | ||
Manufacturer Product Number | OA180AP-11-1TB | |
Description | FAN AXIAL 180X89MM 115VAC TERM | |
Manufacturer Standard Lead Time | 19 Weeks | |
Detailed Description | Fan Tubeaxial 115VAC Square - 180mm L x 180mm H Ball 409.0 CFM (11.45m³/min) 2 Terminals | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | OA180AP-11-1TB Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | Orion Fans | |
Series | ||
Package | Box | |
Product Status | Active | |
Voltage - Rated | 115VAC | |
Size / Dimension | Square - 180mm L x 180mm H | |
Width | 89.00mm | |
Air Flow | 409.0 CFM (11.45m³/min) | |
Static Pressure | 0.840 in H2O (209.2 Pa) | |
Bearing Type | Ball | |
Fan Type | Tubeaxial | |
Features | Thermal Overload Protector (TOP) | |
Noise | 62.0dB | |
Power (Watts) | 70.0W | |
RPM | 3175 RPM | |
Termination | 2 Terminals | |
Ingress Protection | - | |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) | |
Approval Agency | CE, cURus, TUV, UR | |
Weight | 4 lbs (1.8 kg) | |
Current Rating (Amps) | - | |
Voltage Range | 100 ~ 120VAC | |
Material - Frame | Aluminum | |
Material - Blade | Polybutylene Terephthalate (PBT) | |
Lifetime @ Temp. | 60000 Hrs @ 40°C | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | OA180AP Series Datasheet |
| Other Related Documents | |
| Mfg Application Notes | |
| Product Training Modules | AC Fans |
| Environmental Information | Orion Compliance |
| Design Resources | |
| Featured Product | All-Metal IP5556 AC Fans |
| CAD Models | OA180AP-11-1TB Models |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
| California Prop 65 |  Warning Information |
Quantity
All prices are in CAD
Box
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $140.82000 | $140.82 |
| 10 | $126.55500 | $1,265.55 |
| 25 | $124.77120 | $3,119.28 |
| 50 | $116.75060 | $5,837.53 |
| 100 | $114.07690 | $11,407.69 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 1053-1048 OA180AP-11-1TBX OA180AP111TB |
| Standard Package | 1 |
