Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
EKZE101ELL101MK16S | ||
|---|---|---|
Digi-Key Part Number | 565-1736-ND | |
Manufacturer | ||
Manufacturer Product Number | EKZE101ELL101MK16S | |
Description | CAP ALUM 100UF 20% 100V RAD T/H | |
Manufacturer Standard Lead Time | 28 Weeks | |
Detailed Description | 100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | EKZE101ELL101MK16S Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Bulk | |
Product Status | Active | |
Capacitance | ||
Tolerance | ±20% | |
Voltage - Rated | 100 V | |
ESR (Equivalent Series Resistance) | - | |
Lifetime @ Temp. | 5000 Hrs @ 105°C | |
Operating Temperature | -40°C ~ 105°C | |
Polarization | Polar | |
Ratings | - | |
Applications | General Purpose | |
Ripple Current @ Low Frequency | 300 mA @ 120 Hz | |
Ripple Current @ High Frequency | 750 mA @ 100 kHz | |
Impedance | 110 mOhms | |
Lead Spacing | 0.197" (5.00mm) | |
Size / Dimension | 0.492" Dia (12.50mm) | |
Height - Seated (Max) | 0.689" (17.50mm) | |
Surface Mount Land Size | - | |
Mounting Type | ||
Package / Case | Radial, Can | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | KZE Series |
| EDA Models | EKZE101ELL101MK16S Models |

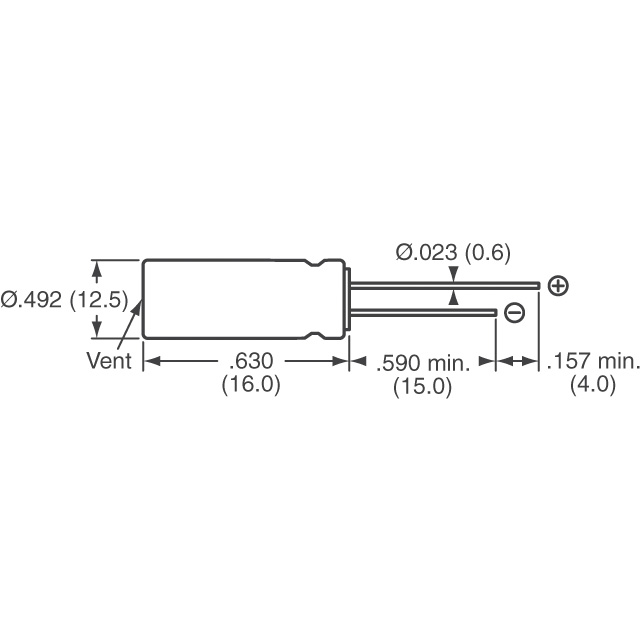

| Product Drawings | KZE Series_12.5 x 16 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.22.0020 |
In-Stock: 43,710
Quantity
All prices are in CAD
Bulk
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $1.93000 | $1.93 |
| 10 | $1.44600 | $14.46 |
| 50 | $1.31980 | $65.99 |
| 100 | $1.08120 | $108.12 |
| 500 | $0.86294 | $431.47 |
| 1,000 | $0.76140 | $761.40 |
| 2,500 | $0.71064 | $1,776.60 |
| 5,000 | $0.68526 | $3,426.30 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 565-1736 |
| Standard Package | 1,000 |
