AWG28-9/F/300

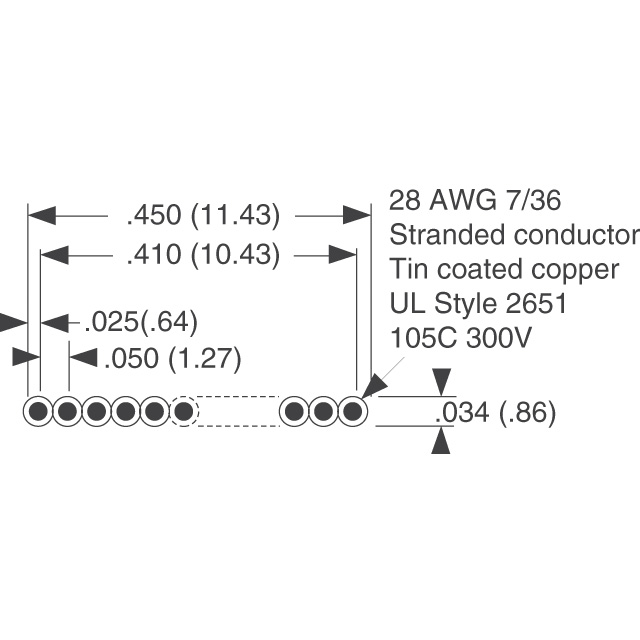

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

AWG28-9/F/300

Digi-Key Part Number
AE09M-100-ND
Manufacturer
Assmann WSW Components
Manufacturer Product Number
AWG28-9/F/300
Description
CBL RIBN 9COND 0.05 MULTI 100'
Detailed Description
Flat Ribbon Cable Multiple 9 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
Customer Reference
Datasheet Datasheet
Product Attributes
Type
Description
Select
Category
Mfr
Assmann WSW Components
Series
AWG
Package
Bulk
Product Status
Active
Cable Type
Flat Cable
Number of Conductors
9
Pitch
0.050" (1.27mm)
Length
100.0' (30.48m)
Wire Gauge
28 AWG
Conductor Strand
7 Strands / 36 AWG
Shielding
Unshielded
Jacket Color
Multiple
Ribbon Thickness
0.035" (0.89mm)
Ribbon Width
0.450" (11.43mm)
Jacket (Insulation) Material
Poly-Vinyl Chloride (PVC)
Voltage
300 V
Operating Temperature
105°C
Ratings
UL Style 2651
Features
-
Conductor Material
Copper, Tinned
Insulation Resistance
100MOhms
First Conductor Mark
Red
Documents & Media
Resource TypeLink
Environmental Information
Featured Product
HTML DatasheetAWG28-xx/F/300 Drawing
Product Drawings
Environmental & Export Classifications
AttributeDescription
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
REACH StatusREACH Unaffected
ECCNEAR99
HTSUS8544.49.3080
0 In Stock
All prices are in CAD
Bulk
QtyUnit PriceExt Price
1$60.56000$60.56
5$49.94400$249.72
10$45.74600$457.46
25$40.88480$1,022.12
50$37.56980$1,878.49
100$34.25480$3,425.48
Manufacturers Standard Package
Alternate Color
CBL RIBN 9COND 0.05 GRAY 100'
Total Quantity 0
Alternate Length
CBL RIBN 9COND 0.05 MULTI 300'
Total Quantity 3,300
CBL RIBN 9COND 0.05 MULTIPLE 50'
Total Quantity 0
CBL RIBN 9COND 0.05 MULTIPLE 10'
Total Quantity 0
CBL RIBN 9COND 0.05 MULTIPLE 5'
Total Quantity 25
CBL RIBN 9COND 0.05 MULTIPLE 25'
Total Quantity 0
You May Also Be Interested In
Additional Resources
AttributeDescription
Other NamesAE09M-100
Standard Package1
