DC2289A-A

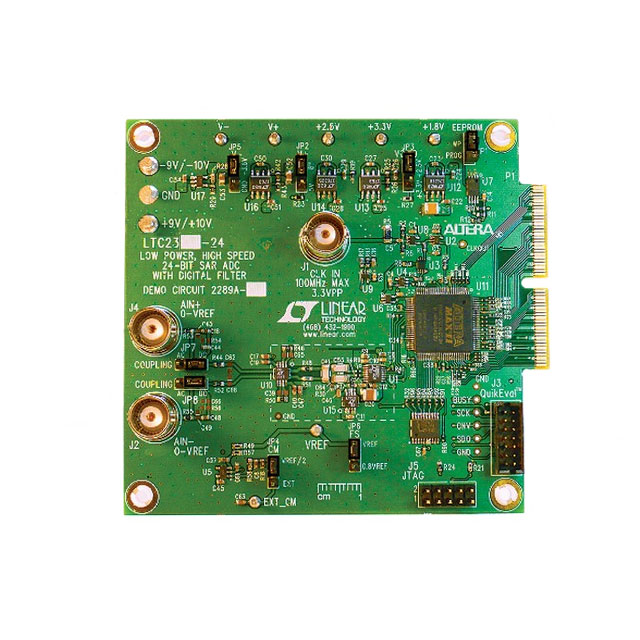

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
DC2289A-A
DC2289A-A

DC2289A-A

Digi-Key Part Number
DC2289A-A-ND
Manufacturer
Analog Devices Inc.
Manufacturer Product Number
DC2289A-A
Description
LTC2380-24 DEMO BOARD
Manufacturer Standard Lead Time
8 Weeks
Detailed Description
LTC2380-24 - 24 Bit 2M Samples per Second Analog to Digital Converter (ADC) Evaluation Board
Customer Reference
Datasheet Datasheet
Product Attributes
Type
Description
Select
Category
Mfr
Analog Devices Inc.
Series
-
Package
Box
Product Status
Active
Number of A/D Converters
1
Number of Bits
24
Sampling Rate (Per Second)
2M
Data Interface
SPI
Input Range
±VREF
Power (Typ) @ Conditions
28mW @ 2MSPS
Utilized IC / Part
LTC2380-24
Supplied Contents
Board(s), Cable(s)
Base Product Number
DC2289
Documents & Media
Resource TypeLink
Datasheets
Software DownloadPScope
Design Resources
Featured ProductLTC2380 24-Bit, 2 MSPS Successive Approximation Register (SAR) ADC
PCN Design/SpecificationDatasheet Chg 05/May/2016
HTML Datasheet
Environmental & Export Classifications
AttributeDescription
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
REACH StatusREACH Unaffected
ECCN3A991C4
HTSUS8473.30.1180
0 In Stock
All prices are in CAD
Box
QtyUnit PriceExt Price
1$341.96000$341.96
Manufacturers Standard Package
You May Also Be Interested InSee All 22
Associated ProductSee All 22
Additional Resources
AttributeDescription
Other Names-2735-DC2289A-A
Standard Package1
