20021121-00006C4LF | ||
|---|---|---|
Digi-Key Part Number | 609-3693-2-ND - Tape & Reel (TR) 609-3693-1-ND - Cut Tape (CT) 609-3693-6-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | 20021121-00006C4LF | |
Description | CONN HEADER SMD 6POS 1.27MM | |
Manufacturer Standard Lead Time | 7 Weeks | |
Detailed Description | Connector Header Surface Mount 6 position 0.050" (1.27mm) | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | 20021121-00006C4LF Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
Connector Type | ||
Contact Type | Male Pin | |
Pitch - Mating | ||
Number of Positions | ||
Number of Rows | 2 | |
Row Spacing - Mating | ||
Number of Positions Loaded | All | |
Style | ||
Shrouding | Unshrouded | |
Mounting Type | ||
Termination | Solder | |
Fastening Type | Push-Pull | |
Contact Length - Mating | 0.120" (3.05mm) | |
Contact Length - Post | - | |
Overall Contact Length | - | |
Insulation Height | - | |
Contact Shape | Square | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | 10.0µin (0.25µm) | |
Contact Finish - Post | Tin | |
Contact Material | Copper Alloy | |
Insulation Material | Thermoplastic | |
Features | Pick and Place | |
Operating Temperature | -55°C ~ 125°C | |
Ingress Protection | - | |
Material Flammability Rating | UL94 V-0 | |
Insulation Color | Black | |
Current Rating (Amps) | 1A per Contact | |
Voltage Rating | 125VAC | |
Mated Stacking Heights | - | |
Contact Finish Thickness - Post | 50.0µin (1.27µm) | |
Applications | - | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|

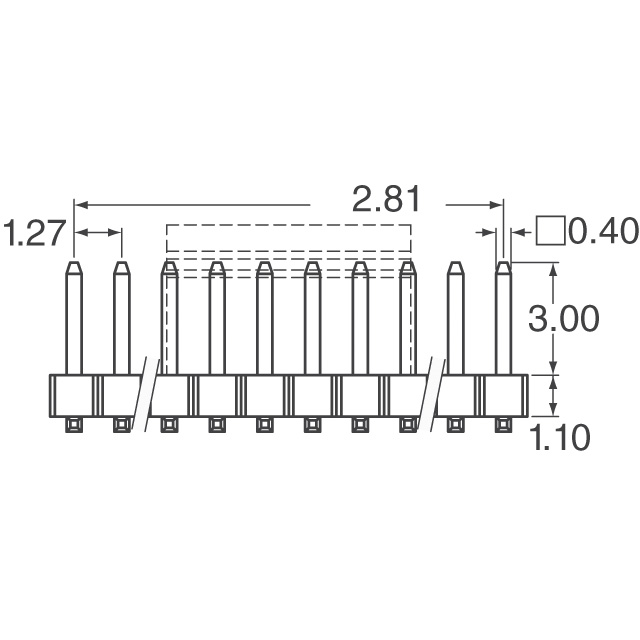

| Datasheets | 20021121 Drawing |
| Product Training Modules | Minitek 127 Connector System |
| Featured Product | |
| CAD Models | 20021121-00006C4LF Models |
| PCN Design/Specification | |
| EDA Models | 20021121-00006C4LF Models |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
In-Stock: 15,451
Quantity
All prices are in CAD
Cut Tape (CT) & Digi-Reel®
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $0.99000 | $0.99 |
| 10 | $0.86400 | $8.64 |
| 100 | $0.71280 | $71.28 |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 600 | $0.61982 | $371.89 |
| 1,200 | $0.51134 | $613.61 |
| 1,800 | $0.49584 | $892.51 |
| 3,000 | $0.46485 | $1,394.55 |
| 6,000 | $0.44936 | $2,696.16 |
| 15,000 | $0.41217 | $6,182.55 |
| 30,000 | $0.40287 | $12,086.10 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 2002112100006C4LF 609-3693-1 609-3693-2 10122279-306000RLF 609-3693-6 Q7330117A |
| Standard Package | 600 |
