BLE 4.2 Long Range Modules Enable Long Range Connectivity for the IoT

Fully qualified/certified BT 4.2 modules from Cypress allow for wireless communication of up to 400 m line-of-sight for a wide variety of next generation IoT devices

Image of Cypress's long-range BT 4.2 modulesCypress’ EZ-BLE™ PRoC™ Extended Range (XR) BT 4.2 Modules (CYBLE-2X20XX-X1) are fully qualified/certified (FCC, CE, MIC, KC, IC) BLE modules supporting Bluetooth Low Energy (BLE) wireless communication, for up to 400 m line-of-sight connectivity. These modules are fully Bluetooth 4.2 compliant. In addition, these turnkey IoT solutions are highly integrated by including an onboard PA, LNA, two crystal oscillators, passive components, and support a number of peripheral functions (ADC, timers, counters, PWM) and serial communication protocols (I2C, UART, SPI) through a programmable architecture.

Long Range BLE Connectivity for Next Generation IoT Applications
Although Bluetooth has historically been known as a short-range wireless protocol, Bluetooth Low Energy (BLE) is being leveraged in a variety of IoT applications due to its low power, long range capabilities. Cypress provides BLE solutions to customers to innovate in these fields, using turnkey, easy-to-use modules that significantly reduce time-to-market. Some target applications include BLE connectivity in lighting, industrial, medical, and the IoT that spans all markets.

Three Different Antenna Options
  • Integrated trace antenna:  CYBLE-212006-01
  • External antenna via u.FL connection: CYBLE-202007-01
  • External antenna via solder pad connection: CYBLE-202013-11
Features
  • Module size: 15.0 mm × 23.0 mm × 2.0mm (with shield)
  • Extended range: up to 400 meters line-of-sight
  • Industrial temperature range: -40°C to +85°C
  • Castellated solder pad connections for ease-of-use
  • Up to 19 GPIOs
  • 256 KB Flash memory, 32 KB SRAM memory
  • Two-pin SWD for programming

Bluetooth 4.2 qualified single-mode module (CYBLE-212006-01 and CYBLE-202007-01 only)

  • QDID:  88957
  • Declaration ID: D032786
  • Certified to FCC, CE, MIC, KC, and IC regulations (CYBLE-212006-01 and CYBLE-202007-01 only). Please refer to Knowledge Base Article KBA213260 for RF certification test reports

Evaluation Boards

  • Easily evaluate any of the EZ-BLE PRoC XR BT 4.2 Modules using the following eval boards: CYBLE-212006-EVAL, CYBLE-202007-EVAL, and CYBLE-202013-EVAL which can be paired with the Cypress Bluetooth Low Energy Pioneer Kit (CY8CKIT-042-BLE / CY8CKIT-042-BLE-A) and PSoC Creator™ to rapidly integrate BLE connectivity into your next design
  • Any of the above EZ-BLE PRoC XR BT 4.2 Module Eval Boards can also be programmed and debugged standalone via the PSoC MiniProg3 Program and Debug Kit (CY8CKIT-002)

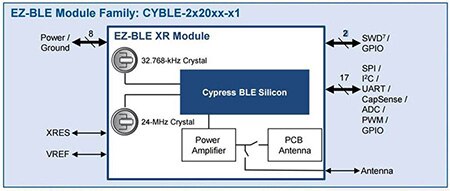

Image of Cypress EZ-BLE® XR Module Chart

EZ-BLE PRoC XR BT 4.2 Modules

ImageManufacturer Part NumberDescriptionAvailable QuantityView Details
RF TXRX MOD BLUETOOTH 4.2 ANTCYBLE-212006-01RF TXRX MOD BLUETOOTH 4.2 ANT936 - ImmediateView Details
RF TXRX MOD BLUETOOTH 4.2 U.FLCYBLE-202007-01RF TXRX MOD BLUETOOTH 4.2 U.FL500 - ImmediateView Details
RF TXRX MOD BLUETOOTH 4.2 RF PINCYBLE-202013-11RF TXRX MOD BLUETOOTH 4.2 RF PIN137 - ImmediateView Details

Evaluation Boards

ImageManufacturer Part NumberDescriptionAvailable QuantityView Details
EZ-BLE PROC EVALUATION BOARDCYBLE-212006-EVALEZ-BLE PROC EVALUATION BOARD13 - ImmediateView Details
EZ-BLE PROC EVALUATION BOARDCYBLE-202007-EVALEZ-BLE PROC EVALUATION BOARD26 - ImmediateView Details
EZ-BLE PROC EVALUATION BOARDCYBLE-202013-EVALEZ-BLE PROC EVALUATION BOARD13 - ImmediateView Details

Associated Products

ImageManufacturer Part NumberDescriptionAvailable QuantityView Details
BLE 4.2 PIONEER KITCY8CKIT-042-BLEBLE 4.2 PIONEER KIT119 - ImmediateView Details
BLE 4.2 PIONEER KITCY8CKIT-042-BLE-ABLE 4.2 PIONEER KIT33 - ImmediateView Details
KIT PSOC MINIPROG3 PROGRAM DEBUGCY8CKIT-002KIT PSOC MINIPROG3 PROGRAM DEBUG238 - ImmediateView Details
Published: 2017-06-19
