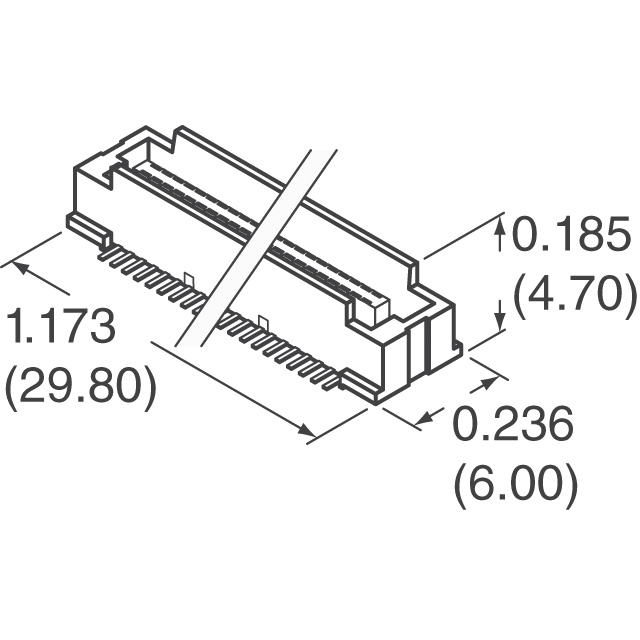

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
61083-061402LF | ||
|---|---|---|
Digi-Key Part Number | 609-1675-2-ND - Tape & Reel (TR) 609-1675-1-ND - Cut Tape (CT) 609-1675-6-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | 61083-061402LF | |
Description | CONN PLUG 60POS SMD GOLD | |
Manufacturer Standard Lead Time | 6 Weeks | |
Detailed Description | 60 Position Connector Plug, Center Strip Contacts Surface Mount Gold | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | 61083-061402LF Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | Amphenol ICC (FCI) | |
Series | ||
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
Connector Type | Plug, Center Strip Contacts | |
Number of Positions | 60 | |
Pitch | 0.031" (0.80mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide | |
Contact Finish | Gold | |
Contact Finish Thickness | 8.00µin (0.203µm) | |
Mated Stacking Heights | 5mm, 9mm, 13mm | |
Height Above Board | 0.185" (4.70mm) | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Training Modules | Bergstak Overview |
| Video File | Mezzselect Tool - Another Geek Moment |
| Featured Product | |
| CAD Models | 61083-061402LF Models |
| PCN Design/Specification | |
| PCN Assembly/Origin | BergStak 0.8mm 10/May/2012 |
| PCN Packaging | |
| EDA Models | 61083-061402LF Models |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
In-Stock: 2,811
Quantity
All prices are in CAD
Cut Tape (CT) & Digi-Reel®
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $5.30000 | $5.30 |
| 10 | $4.81900 | $48.19 |
| 25 | $4.56440 | $114.11 |
| 50 | $4.45820 | $222.91 |
| 100 | $4.24580 | $424.58 |
| 250 | $3.71508 | $928.77 |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 900 | $3.29050 | $2,961.45 |
| 1,800 | $2.97207 | $5,349.73 |
| 2,700 | $2.86592 | $7,737.98 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 609-1675-6 61083061402LF 609-1675-2 609-1675-1 |
| Standard Package | 900 |
