VT1697SB Smart Slave IC

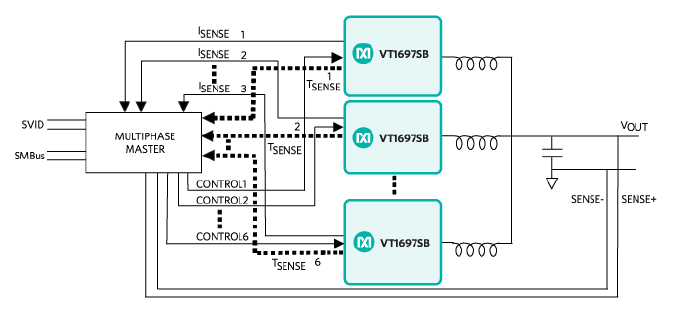

The VT1697SB is a feature-rich smart slave IC designed to work with Analog Devices' seventh-generation masters to implement a high-density multiphase voltage regulator. Up to six smart slave ICs, plus a master IC, provide a compact synchronous buck converter that includes accurate individual phase-current and temperature reporting via SMBus/PMBus. This smart slave device includes protection circuits for overtemperature, VS short, all power supplies UVLO faults and main power supply OVLO fault. If a fault is detected, the slave IC will immediately shut down and send a fault signal to the master IC.

Monolithic integration and advanced packaging technologies allow practical per-phase, high switching frequencies with significantly lower losses than alternative implementations. Smart slave devices are designed to support phase-shedding and DCM modes for efficiency optimization over a wide range of load currents. High per-phase current-capability designs with low C_OUT enable a design with fewer phases and a smaller footprint.

Key Features

• Increased power density with fewer external components
• Accurate telemetry and monitoring provides real-time reporting of critical parameters
• Advanced self-protection features protects system and IC
