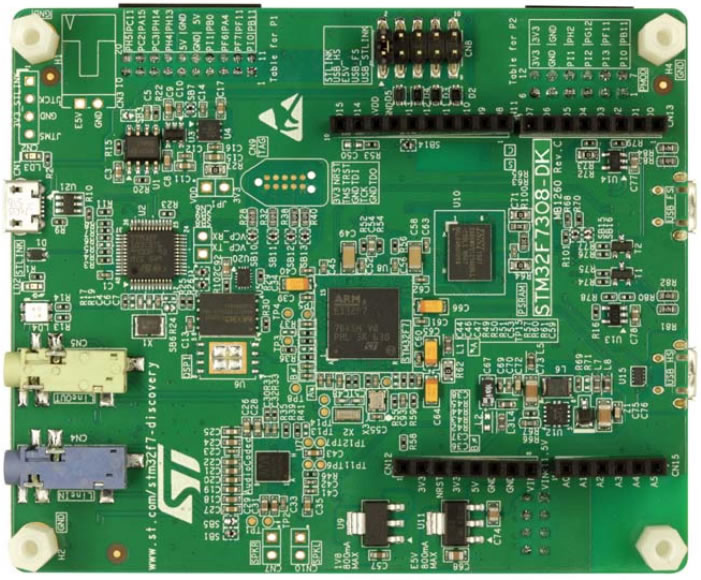

            STM32F7308 Discovery Kit
                    STMicroelectronics’ STM32F7308 Discovery kit with STM32F7308I8 MCU for application development


STMicroelectronics' STM32F7308-DK Discovery kit allows users to develop applications with the microcontrollers of the STM32F7 Series, based on the Arm® Cortex®-M7 core.

The STM32F7308-DK Discovery kit enables a wide diversity of applications, taking benefit from audio, multi-sensor support, graphics, security, video, and high-speed connectivity features.

The Pmod™, STMod+, and Arduino™ Uno V3 connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Features and Benefits

STM32F730I8K6 Arm Cortex-M7 core-based microcontroller featuring 64 Kb of Flash memory and 176+16 Kb of RAM in a BGA176 package
TFT LCD 240 x 240 pixels with touch panel
USB OTG HS FS
SAI audio codec
4 ST MEMS microphones
512 Mbit quad-SPI Flash memory
8 Mbit external PSRAM
1 user and reset push-button
Board connectors:

USB with Micro-AB
Audio jack for external speakers and microphone

On-board ST-LINK/V2-1 supporting USB re-enumeration capability: mass storage, Virtual COM port, debug port
Flexible power-supply options: ST-LINK USB VBUS or external sources

Board expansion connectors:

Arduino Uno V3
ESP-01 Wi-Fi® module connector
Pmod
STMod+

Power supply output for external applications: 3.3 V or 5 V
Fanout board (included inside the board package) compatible with MikroElektronika Click boards™, ESP-01, and Seeed Studio™ Grove modules. Provision for headers for direct breadboard plug-in
Comprehensive free software including a variety of examples available with the STM32Cube™ MCU package
Support of a wide choice of integrated development environments (IDEs) including IAR™, Keil®, GCC-based IDEs
