MAX3420EEVKIT-2+: 12 Mbps USB to SPI Interface

Summary

The MAX3420E evaluation kit-2 (EV kit-2) provides a proven design to evaluate the MAX3420E USB peripheral controller with SPI™ interface. The EV kit-2 board is jumper-connected to an Atmel® ATtiny2313 microcontroller by default, but can also be connected to any SPI master.

The MAX3420E EV kit-2 adds USB functionality to any microcontroller, microprocessor, DSP, CPLD, FPGA, or ASIC with an SPI master interface or five GPIO lines can connect to the MAX3420E EV kit-2.

The EV kit-2 board comes with the MAX3420EECJ+ installed.

Specifications

Manufacturer Analog Devices Inc./Maxim Integrated
Category Wired Communication
Sub-Category Interface Solutions
Eval Board Part Number MAX3420EEVKIT-2+-ND
Eval Board Supplier Analog Devices Inc./Maxim Integrated
Eval Board Normally In Stock
Purpose USB to SPI
Component Count + Extras 26 + 22
Features ESD Protection
SPI Interface
USB Interface
Data Rate (Max) 12 Mbps (USB 2.0 Full Speed)
Design Author Maxim Integrated Products
Main I.C. Base Part MAX3420E
Date Created By Author 2006-12
Date Added To Library 2014-02

Eval Board

Order a fully assembled board:

Quantity Available: 0

Quantity:

Support Documents & Media

MAX3420EEVKIT-2 - User Guide MAX3420E - Datasheet

Media

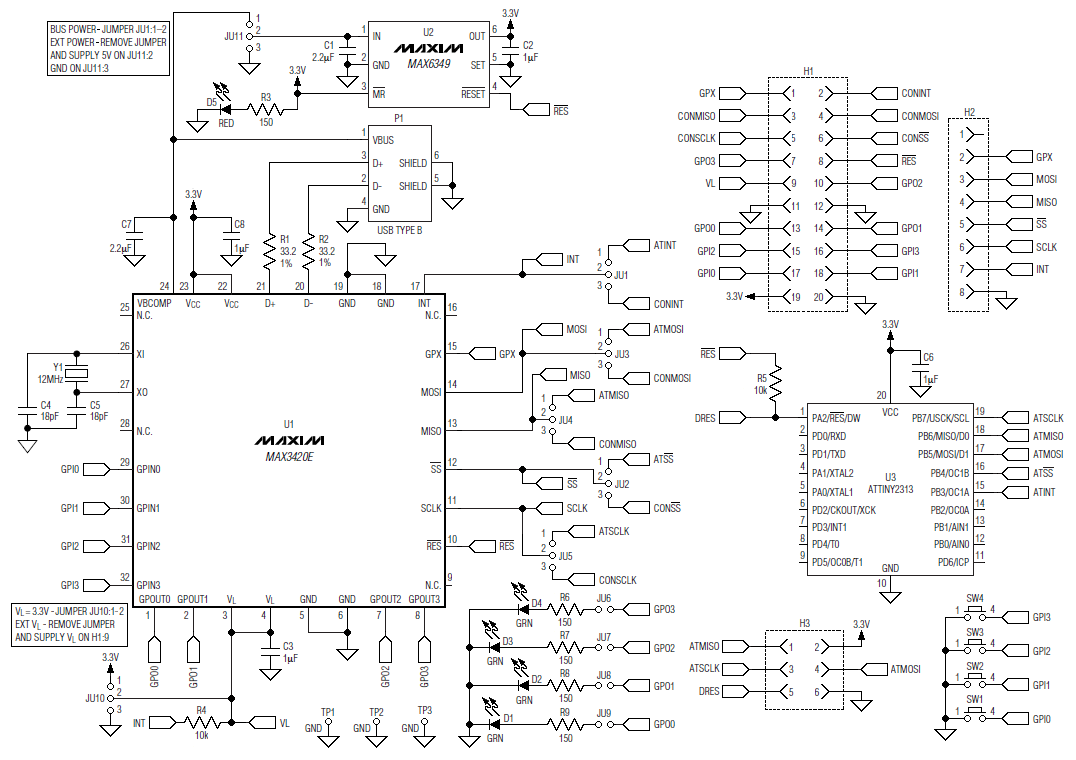

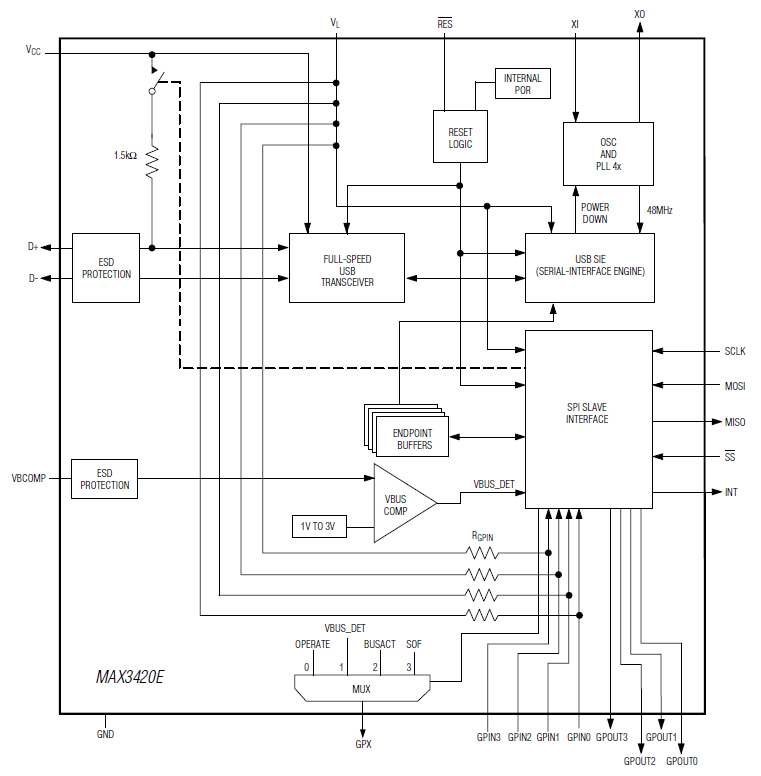

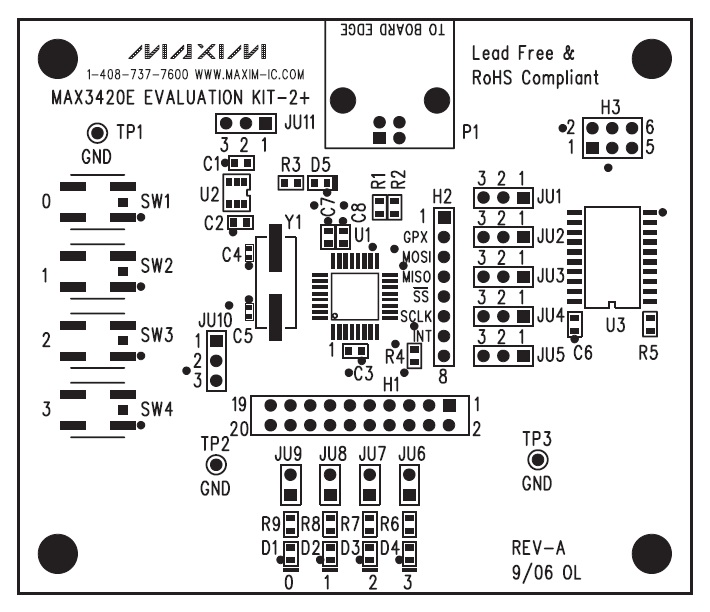

MAX3420EEVKIT_2_Schematic_Full.png MAX3420EEVKIT_2_Board_Full.jpg MAX3420EEVKIT_2_Board_2_Full.jpg MAX3420EEVKIT_2_Block_Dia_Full.png
