PS2561B(L,L1,L2)-1

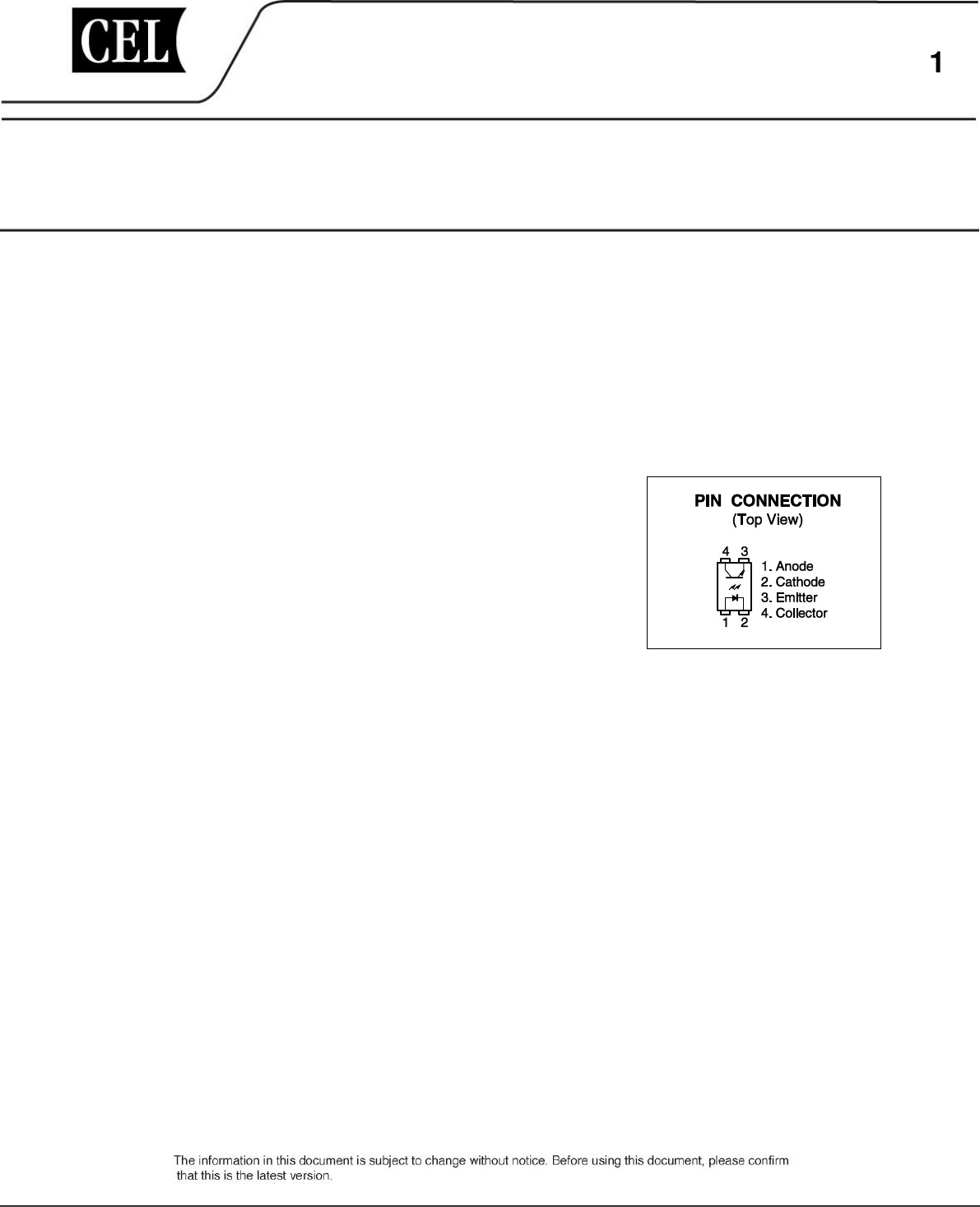

PIN CONNECTION (Top View) 4 3 1.Anode E4) 2.Calhode 3.Emmer W 4.00llsc10r The mlormanon m m documem vs subiect to change without nohce Before usmg ms documem please canwm that ﬁns ‘5 the Ia‘esl VEIS‘OH

PHOTOCOUPLER

PS2561B-1,PS2561BL-1

PS2561BL1-1,PS2561BL2-1

DIP PHOTOCOUPLER

OPERATING AMBIENT TEMPERATURE 110C

NEPOC Series

Document No. PN10505EJ05V0DS (5th edition)

Date Published September 2009 NS

The mark <R> shows major revised points.

The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.

DESCRIPTION

The PS2561B-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon

phototransistor.

The PS2561B-1 is in a plastic DIP (Dual In-line Package) and the PS2561BL-1 is lead bending type (Gull-wing) for

surface mount.

The PS2561BL1-1 is lead bending type for long creepage distance.

The PS2561BL2-1 is lead bending type for long creepage distance (Gull-wing) for surface mount.

FEATURES

•Operating ambient temperature: 110C

•High Isolation voltage (BV = 5 000 Vr.m.s.)

•High collector to emitter voltage (VCEO = 80 V)

•High current transfer ratio (CTR = 200% TYP.)

•High-speed switching (tr = 3



s TYP., tf = 5



s TYP.)

•Ordering number of taping product: PS2561BL-1-F3 : 2 000 pcs/reel

: PS2561BL2-1-E3: 1 000 pcs/reel

•Pb-Free product

•Safety standards

•UL approved: No. E72422

•CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)

•BSI approved: No. 7112/7420

•SEMKO approved: No. 903238

•NEMKO approved: No. P09210868

•DEMKO approved: No. 314999

•FIMKO approved: No. FI 25119

•DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40008862 (Option)

APPLICATIONS

•Power supply

•Telephone/FAX.

•FA/OA equipment

•Programmable logic controller

<R>

.California Eastern Laboratories P52561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1 P52561 B-1 65:0.5 r ’\ 210.4 41520.4 3.51:0.3 p—p 4.65035 ﬂ» Jaw F52561 B L1 -1 Elm- US ('5 ¥ / "25‘9“ 4.‘-25==°-‘5 E ‘L 02532.5 01015“ P52561BL-1 P52561BL2-1 4.E&O.C{5 4 3 Q G u; 6 ~32 xv “a v.9 _3 2 Z ° ° 03:13.25 ‘ 0.94025 ' 93030.4 a “-2

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

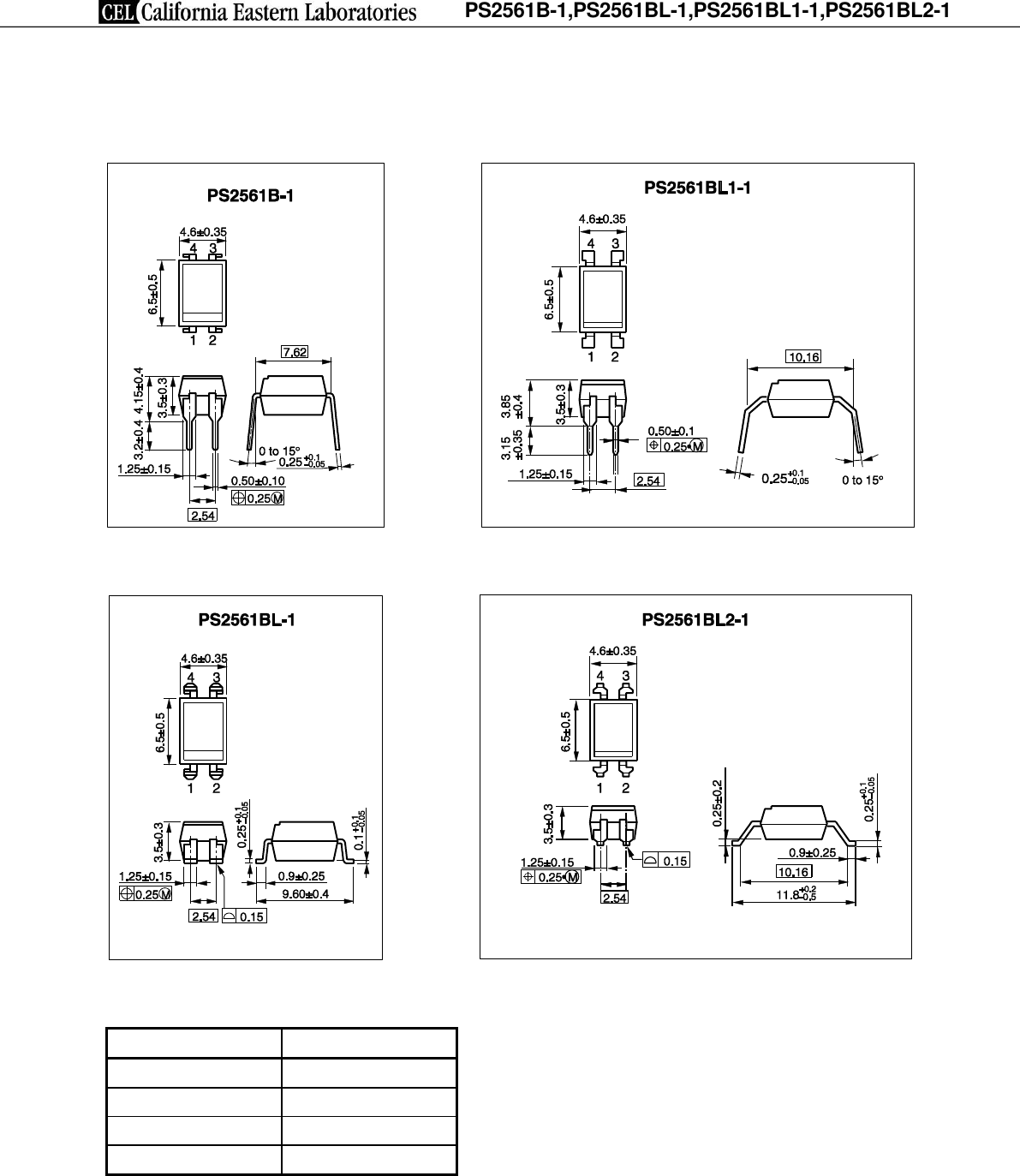

PACKAGE DIMENSIONS (UNIT : mm)

DIP Type Long Creepage Distance

Lead Bending Type (Gull-Wing) Long Creepage Distance (Gull-Wing)

PHOTOCOUPLER CONSTRUCTION

Parameter

Unit (MIN.)

Air Distance

7 mm

Outer Creepage Distance

7 mm

Inner Creepage Distance

4 mm

Isolation Thickness

0.4 mm

<R>

.Caliform'a Eastern Laboratories P52561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1 No. 1 pin Mark 2561 B NJ931 -Assembiy Lot N J 9 a1 TWeek Assembled Year Assembled (Last 1 Digii) ln-hcuse Code CTR Rank Code Package Made hJapari Made In TaMan Pb—Frse New PKG J K Pb—Frse and New PKG R Y Halogen Free " -1 Spsc'al version

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

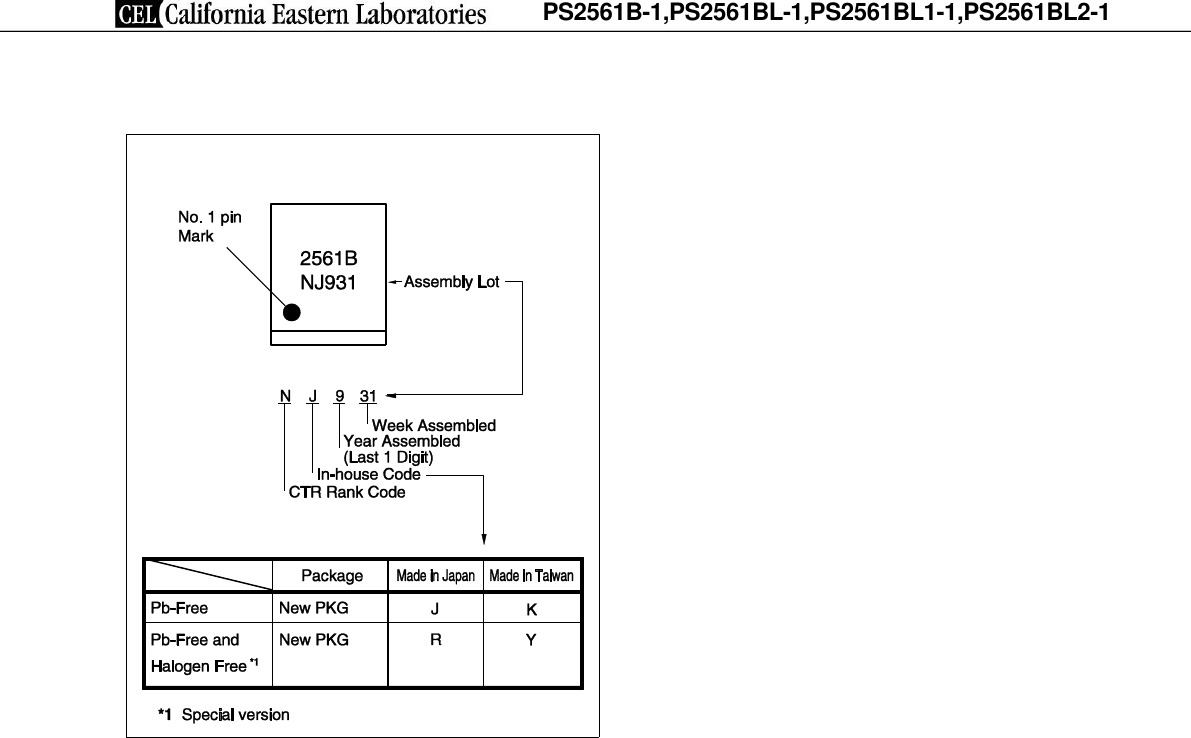

MARKING EXAMPLE

<R>

.Caljfornja Eastern Laboratories P32561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

ORDERING INFORMATION

Part Number

Order Number

Solder Plating

Specification

Packing Style

Safety Standard

Approval

Application

Part Number

PS2561B-1

PS2561B-1-A

Pb-Free

Magazine case 100 pcs

Standard

products

PS2561B-1

PS2561BL-1

PS2561BL-1-A

(UL, CSA, BSI,

PS2561BL1-1

PS2561BL1-1-A

SEMKO, NEMKO,

PS2561BL2-1

PS2561BL2-1-A

DEMKO, FIMKO

PS2561BL-1-F3

PS2561BL-1-F3-A

Embossed Tape 2 000

pcs/reel

approved)

PS2561BL2-1-E3

PS2561BL2-1-E3-A

Embossed Tape 1 000

pcs/reel

PS2561B-1-V

PS2561B-1-V-A

Magazine case 100 pcs

DIN EN60747-5-2

PS2561BL-1-V

PS2561BL-1-V-A

(VDE0884 Part2)

PS2561BL1-1-V

PS2561BL1-1-V-A

approved

PS2561BL2-1-V

PS2561BL2-1-V-A

(Option)

PS2561BL-1-V-F3

PS2561BL-1-V-F3-A

Embossed Tape 2 000

pcs/reel

PS2561BL2-1-V-E3

PS2561BL2-1-V-E3-A

Embossed Tape 1 000

pcs/reel

PS2561B-1

PS2561B-1Y-A

Special version

Magazine case 100 pcs

Standard

products

PS2561B-1

PS2561BL-1

PS2561BL-1Y-A

(Pb-Free and

(UL, CSA, BSI,

PS2561BL1-1

PS2561BL1-1Y-A

Halogen Free)

SEMKO, NEMKO,

PS2561BL2-1

PS2561BL2-1Y-A

DEMKO, FIMKO

PS2561BL-1-F3

PS2561BL-1Y-F3-A

Embossed Tape 2 000

pcs/reel

approved)

PS2561BL2-1-E3

PS2561BL2-1Y-E3-A

Embossed Tape 1 000

pcs/reel

PS2561B-1-V

PS2561B-1Y-V-A

Magazine case 100 pcs

DIN EN60747-5-2

PS2561BL-1-V

PS2561BL-1Y-V-A

(VDE0884 Part2)

PS2561BL1-1-V

PS2561BL1-1Y-V-A

approved

PS2561BL2-1-V

PS2561BL2-1Y-V-A

(Option)

PS2561BL-1-V-F3

PS2561BL-1Y-V-F3-A

Embossed Tape 2 000

pcs/reel

PS2561BL2-1-V-E3

PS2561BL2-1Y-V-E3-A

Embossed Tape 1 000

pcs/reel

*1 For the application of the Safety Standard, following part number should be used.

<R>

.Caljfornja Eastern Laboratories P32561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

ABSOLUTE MAXIMUM RATINGS (TA = 25C, unless otherwise specified)

Parameter

Symbol

Ratings

Unit

Diode

Reverse Voltage

Forward Current (DC)

Power Dissipation Derating



PD/C

1.5

mW/C

Power Dissipation

150

Peak Forward Current*1

IFP

Transistor

Collector to Emitter Voltage

VCEO

Emitter to Collector Voltage

VECO

Collector Current

Power Dissipation Derating



PC/C

1.5

mW/C

Power Dissipation

150

Isolation Voltage*2

5 000

Vr.m.s.

Operating Ambient Temperature

–55 to +110

C

Storage Temperature

Tstg

–55 to +150

C

*1 PW = 100



s, Duty Cycle = 1%

*2 AC voltage for 1 minute at TA = 25°C, RH = 60% between input and output.

Pins 1-2 shorted together, 3-4 shorted together.

.Caljfornja Eastern Laboratories P32561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1 Pubs Inpm ’Pw=1ouus DulyCycle=I/10 Input Output

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

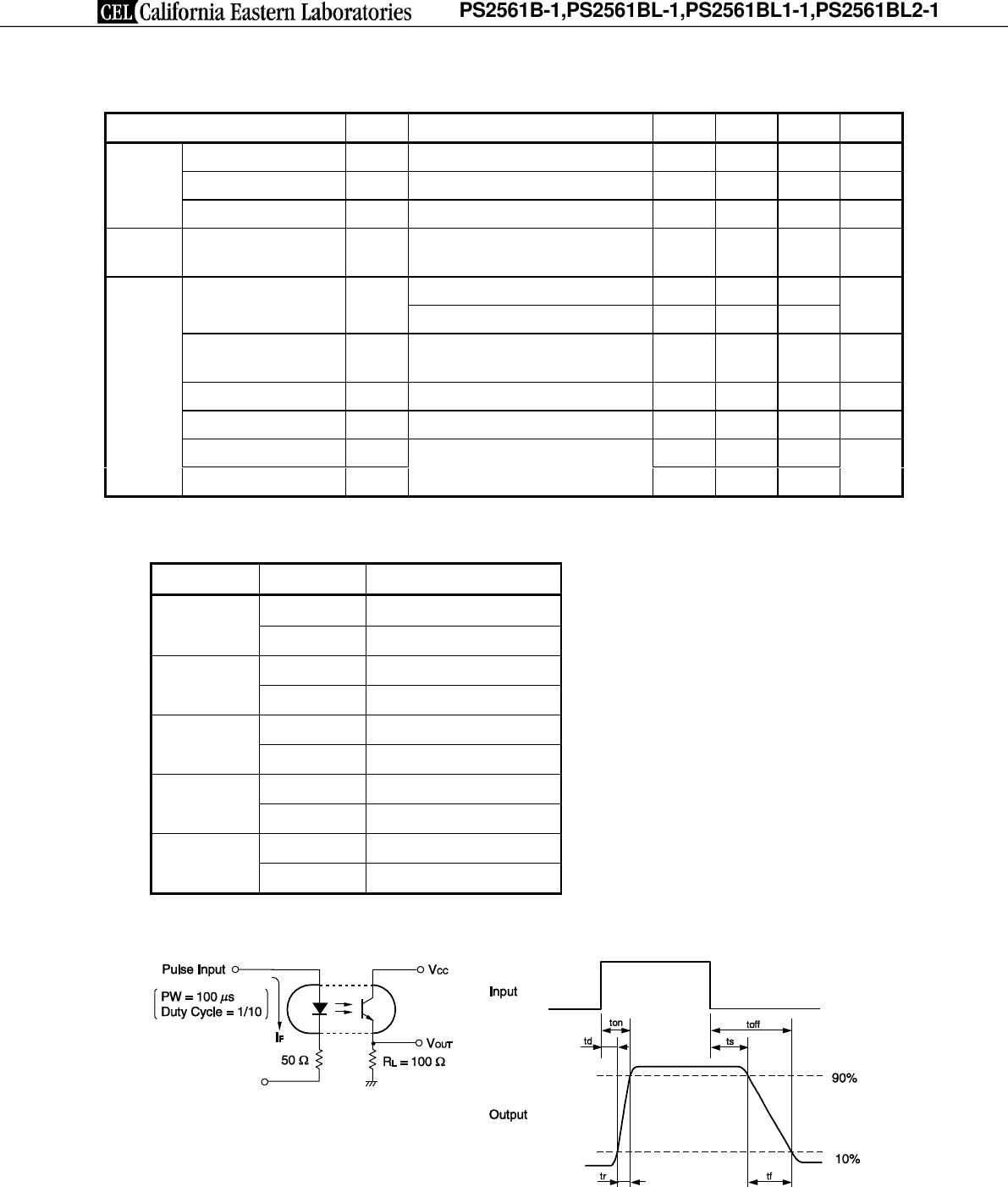

ELECTRICAL CHARACTERISTICS (TA = 25C)

Parameter

Symbol

Conditions

MIN.

TYP.

MAX.

Unit

Diode

Forward Voltage

IF = 10 mA

1.17

1.4

Reverse Current

VR = 5 V



Terminal Capacitance

V = 0 V, f = 1.0 MHz

Transistor

Collector to Emitter Dark

Current

ICEO

VCE = 48 V, IF = 0 mA

100

Coupled

Current Transfer Ratio

(IC/IF)*1

CTR

IF = 5 mA, VCE = 5 V

100

200

400

IF = 1 mA, VCE = 5 V

100

Collector Saturation

Voltage

VCE (sat)

IF = 10 mA, IC = 2 mA

0.3

Isolation Resistance

RI-O

VI-O = 1.0 kVDC

1011



Isolation Capacitance

CI-O

V = 0 V, f = 1.0 MHz

0.5

Rise Time*2

VCC = 10 V, IC = 2 mA, RL = 100 



Fall Time*2

*1 CTR rank

CTR Rank

CTR (%)

Conditions

100 to 200

IF = 5 mA, VCE = 5 V

50 and larger

IF = 1 mA, VCE = 5 V

130 to 260

IF = 5 mA, VCE = 5 V

70 and larger

IF = 1 mA, VCE = 5 V

100 to 300

IF = 5 mA, VCE = 5 V

50 and larger

IF = 1 mA, VCE = 5 V

200 to 400

IF = 5 mA, VCE = 5 V

100 and larger

IF = 1 mA, VCE = 5 V

100 to 400

IF = 5 mA, VCE = 5 V

50 and larger

IF = 1 mA, VCE = 5 V

*2 Test circuit for switching time

.California Eastern Laboratories DIODE POWER DISSIPATION vs. AMBIENTTEMPERATURE 150 g E & S 100 E 1.5mW/“C 2 m 3 1: g 50 11 3 2 1:. u 25 50 75 100““ 125 150 Amblanl Tamperamre T1 ("0) FORWARD CURRENT vs. FORWARD VOLTAGE 100 5° Tunggvg A + ° “ +2st 3% 10 E 5 E :5 1 “g 0.5 12 0.1 0.7 0.0 0.9 1.0 1.1 1.2 1.3 1.4 1.5 Far-mam Vallsgs v; (V) COLLECTOR TO EMITI'ER DARK CURRENT vs. AMBIENT TEMPERATURE 10 000 VuE=ABV 24V 10V 5V 0 c o 100 o Calamarm Emmar Dark Curranl Ima (nA) -50 -25 0 25 50 75100110 Amhianl Tampemture TA (”(2) Callecmr Current In (mA) Translator Pmr Dlsslpallnn P0 (mW) Cnllector surrem I: (mix) P52561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1 TRANSISTOR POWER DISSIPATION VS. AMBIENT TEMPERATURE 150 100 1.5 mW/“C 50 100“" 125 150 Ambient Temperature Twa) u 25 50 75 COLLECTOR CURRENT vs. COLLECTOR TO EMI'I'I'ER VOLTAGE 70 so 50 40 30 20 10 0 2 4 a a 10 Callsclnrm Eminsr Vnnsgs V115 1v; COLLECTOR CURRENT vs. COLLECTOR SATURATION VOLTAGE 40 20 mA 10 5mA ZmA IF-l mA 0.5 0.1 0 0.2 0.4 0.6 0.0 1 .0 Colecmr Salurallon Vullage Vain-11 (V)

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

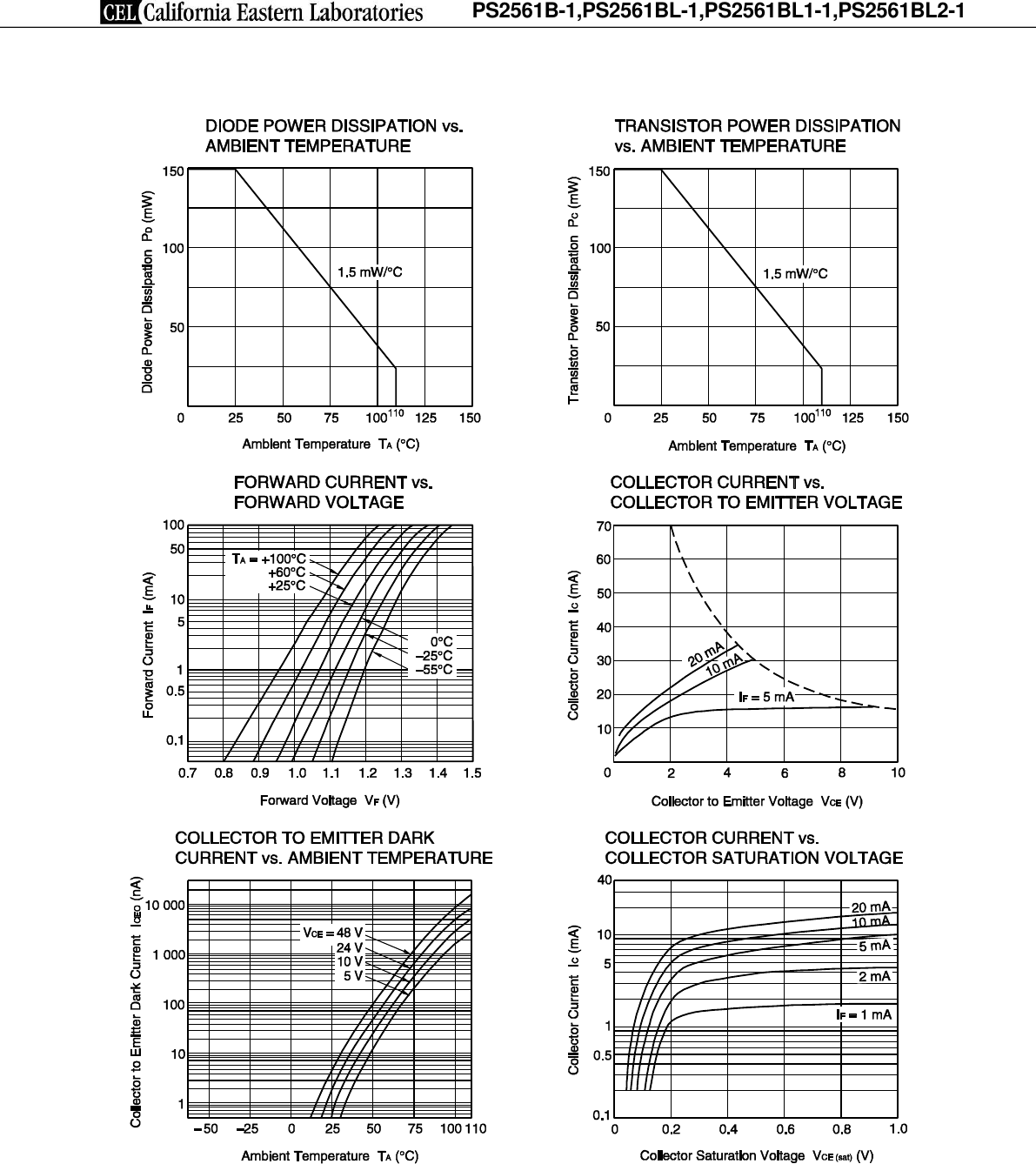

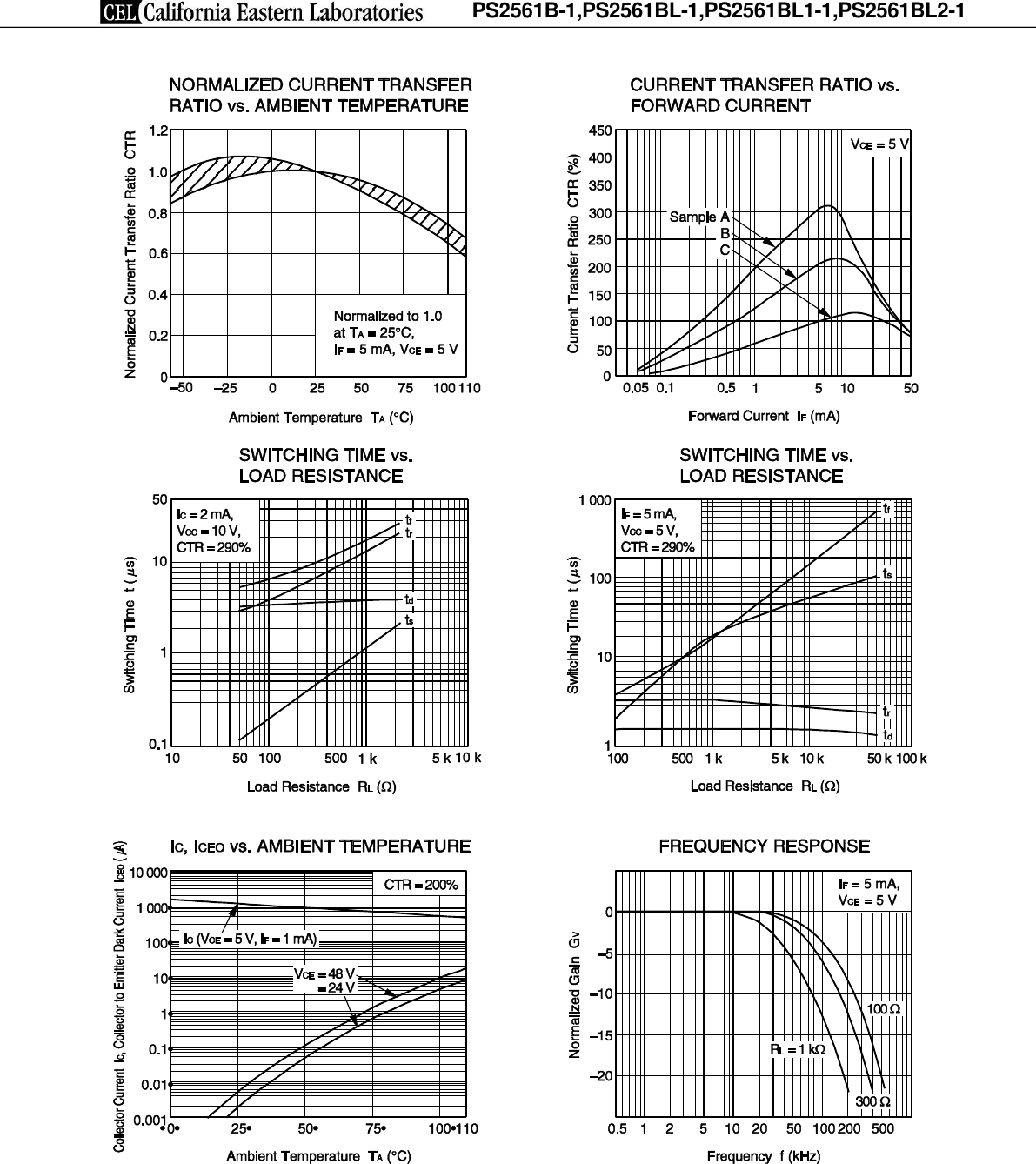

TYPICAL CHARACTERISTICS (TA = 25°C, unless otherwise specified)

Remark The graphs indicate nominal characteristics.

.California Eastern Laboratories P52561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1 NORMALIZED CURRENT TRANSFER RATIO vs. AMBIENT TEMPERATURE 1.2 E /7 .9 1.0 E /% ZZQ % 0.8 : E 0 '- 0 6 E a 5 0.4 g Normallzed m 1.0 g 02 at TA - 25-16. g IF=5mA.VcE=5V E 0-50 —25 0 25 50 75100110 Ambient Tamparatuna T. (“(2) SWITCHING TIME V5. LOAD RESISTANCE 50 |c=2mA1 Voc=10V. CTR=290"/o 10 Swllchlng 11me mm) 0.1 10 50 100 500 1k 5k10k Luad Resistance R1 (1)) la, Ich vs. AMBIENT TEMPERATURE é CTR=200% Ic(VcE=5V.k=1mA) Vﬁ=48V .24V .0 0.01 0.0010. 25- 50- 75- 100-110 Ambisnl 1ampsra1ure TA (“0) Calamanunanl In. Cullemurm ErII'IIav Dark CummI Inaz( IA) CURRENT TRANSFER RATIO vs. FORWARD CURRENT Cum-ml TmnsIar Ratio cm (7») 0 0.05 0.1 0.5 1 5 1o 50 Forward Current l1=(rnA) SWITCHING TIME VS. LOAD RESISTANCE 1000 k=5mA. vm=5w ch=zs1m a 3 100 a: E ._ m E 10 0 § 11: 1. ‘ 1.1 100 soo1k 5k1uk 50k100k Load Fleslslance Run) FREQUENCY RESPONSE Ir=5mA, VcE=5V a 0 6 5 -5 a w 10 u _ ﬂ 1009 u E —15 2° m\ —20 soon 1 1 11 0.5 1 2 5 10 20 50 100200 500 Frequency 1 (kHz)

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

Remark The graphs indicate nominal characteristics.

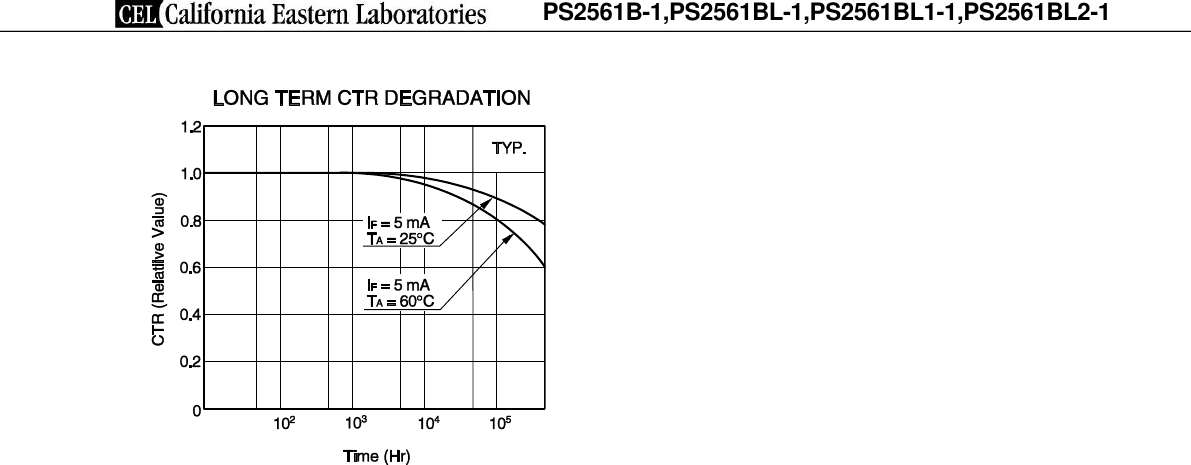

.Caliform'a Eastern Laboratories CTR (Helalllve Value) LONG TERM CTR DEGRADATION P52561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1 1 2 TYP. 1 .0 \§ 0.8 I; = 5 mA TA = 25a 0.5 1 1 IF = 5 mA TA = 519 0.4 02 o 102 10‘ 10‘ 10‘3 True (Hr)

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

Remark The graph indicates nominal characteristics.

.Caljfornja Eastern Laboratories P52561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1 Outline and Dimensions (Tape) 2.0g0.1 4.0g0.1 4.5 MAX. Tape Direction P52561 BL—1 -F3 OOOOOOOO Outline and Dimensions (Reel) 23:05 0. ° — ‘31 ‘— _ 9, § _ ‘2 3 _ 17.5:L0 2155.0 15.9m19_4 Oulev edge of ﬂange Packing: 2 000 pas/reel

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

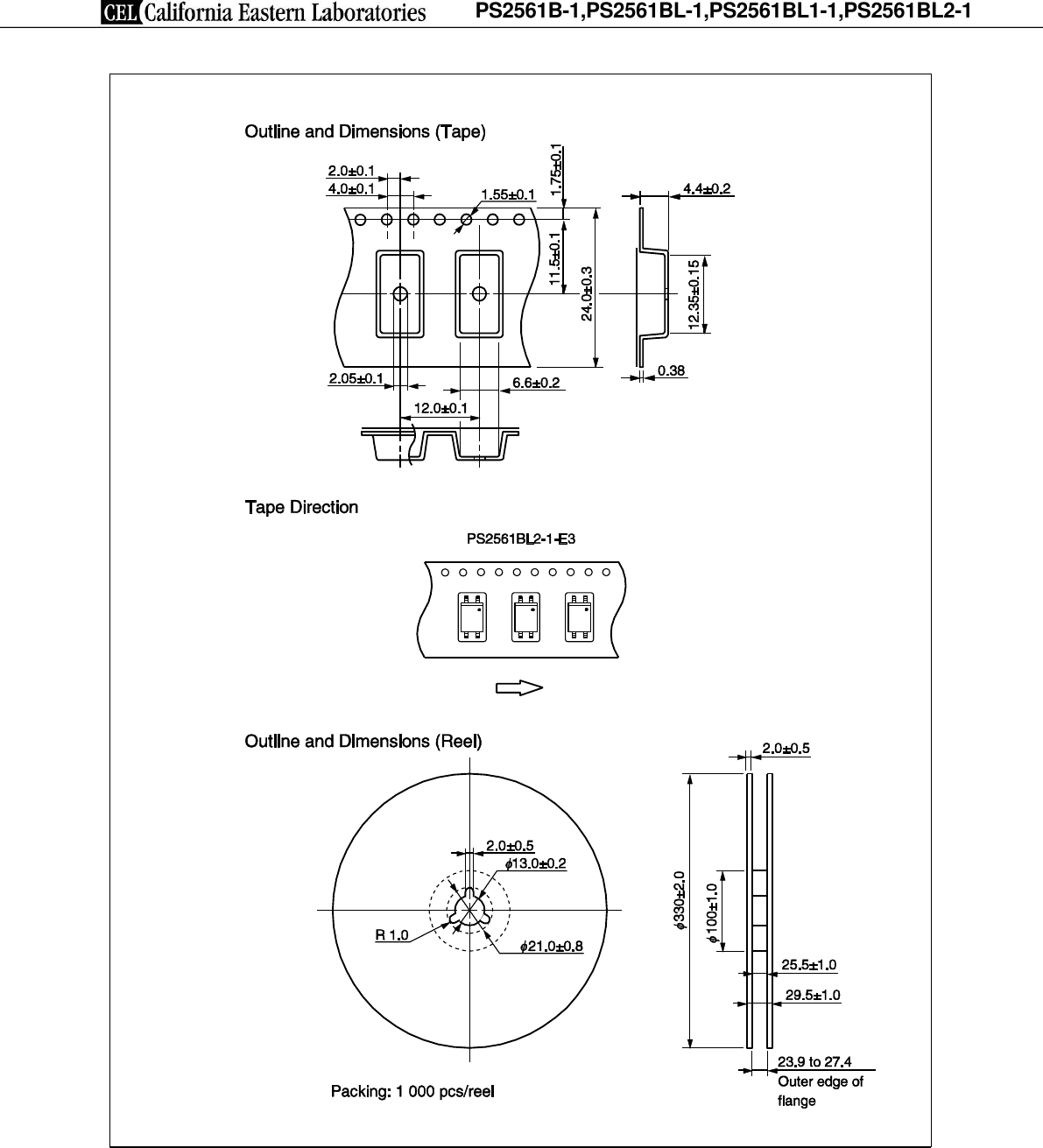

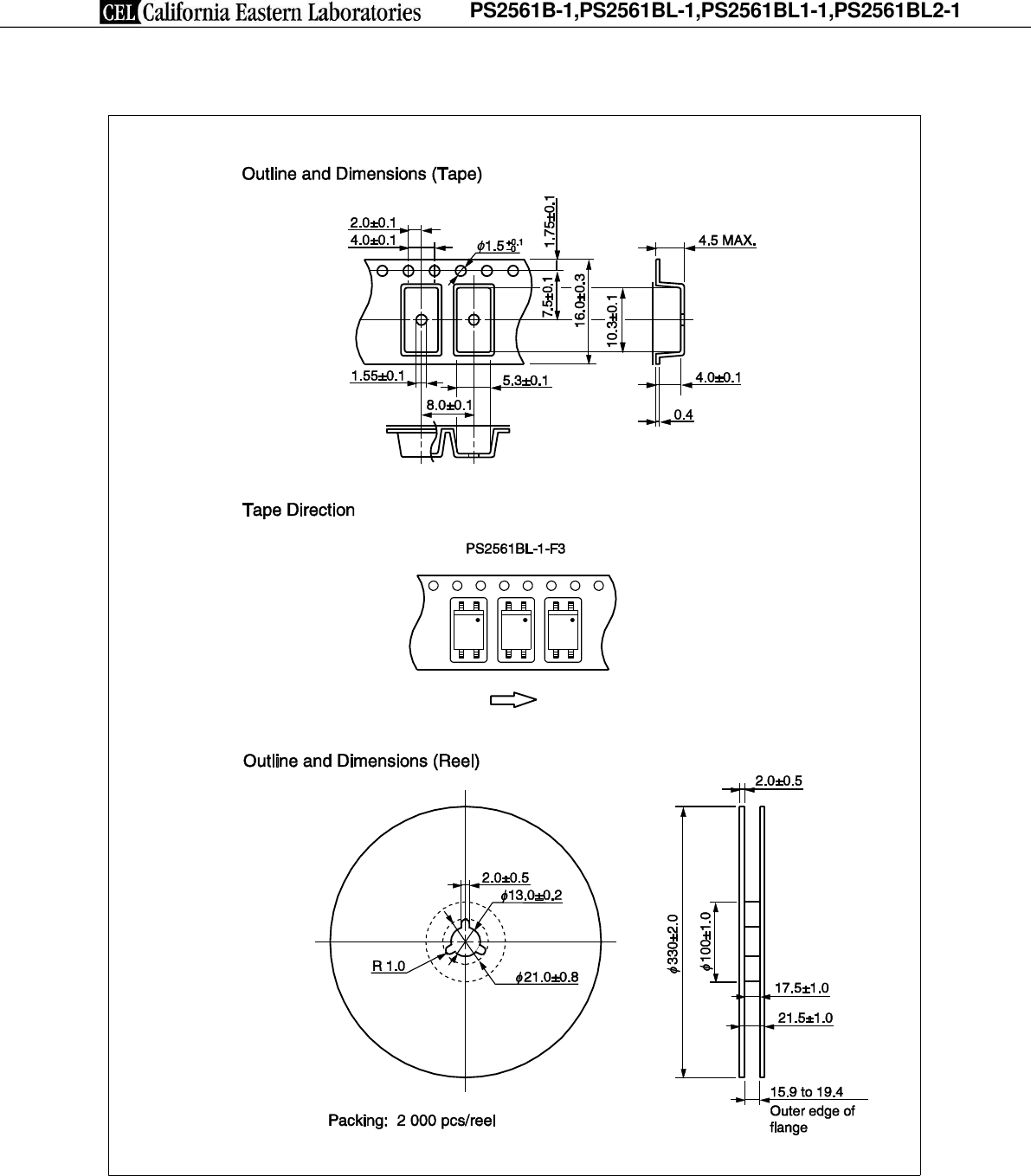

TAPING SPECIFICATIONS (UNIT : mm)

<R>

.Caﬁform’a Eastern Laboratories P52561B-1,P52561BL-1,P32561BL1-1,P32561BL2-1 Oulline and Dimensions (T ape) 23:01 4 1 4.4::0.2 123520.! 5 Tape Direction P52561BL2-1 £3 oooooooooo I:> Outline and Dimensions (Reel) 2.0:05 Macao amt”) 25.521 .0 7 29521.0 23.9 In 27.4 Outer edge oi ﬂange Packing: 1 000 pas/reel

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

.Caliform'a Eastern Laboratories Package Suﬂaoe Temperalure T (=0) P52561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1 Recommended Temperature Proﬁle 01 lnlrared Reﬂow 180°C j 120“C 120m: 5 (prehezling) (healing) lo 10 s In 505 260%: MAX. 220%: Tlme (s)

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

NOTES ON HANDLING

1. Recommended soldering conditions

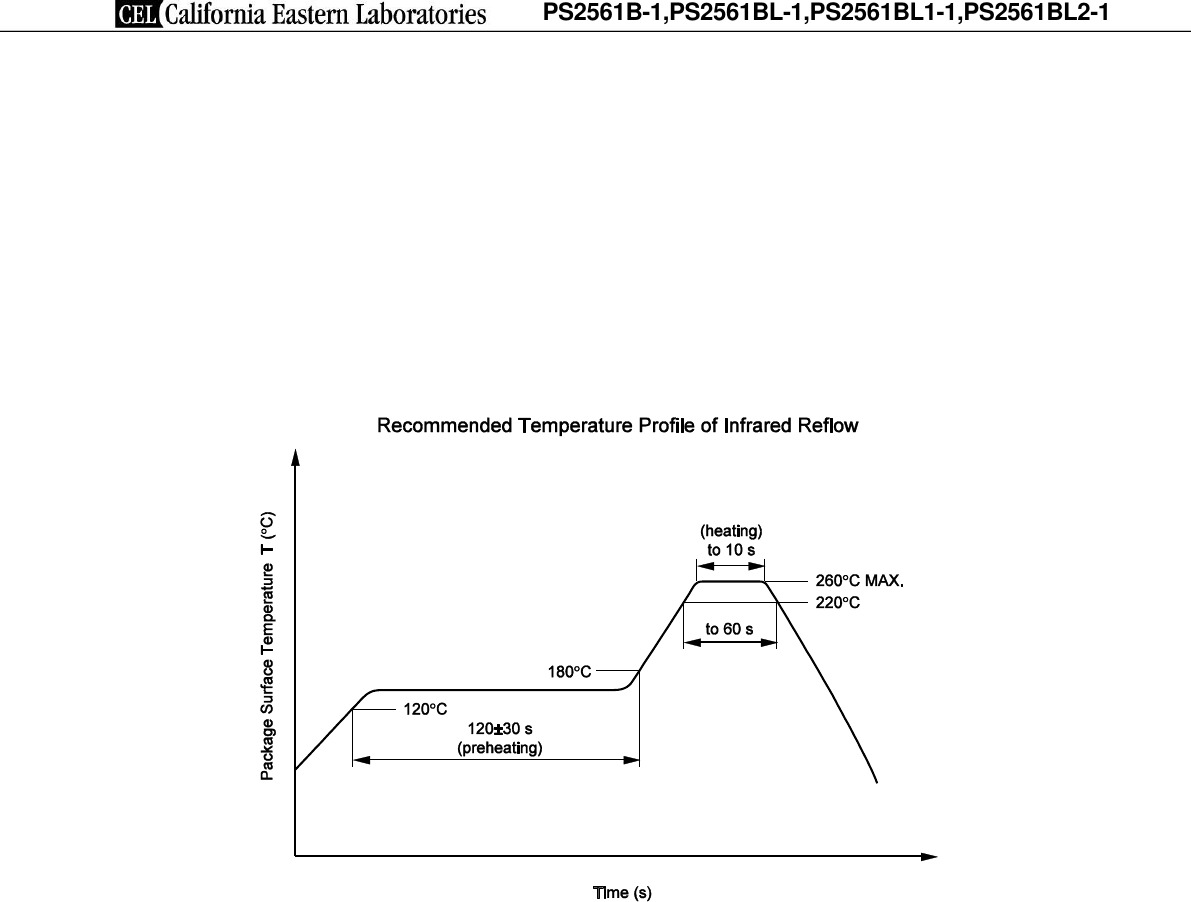

(1) Infrared reflow soldering

•Peak reflow temperature 260C or below (package surface temperature)

•Time of peak reflow temperature 10 seconds or less

•Time of temperature higher than 220C 60 seconds or less

•Time to preheat temperature from 120 to 180C 12030 s

•Number of reflows Three

•Flux Rosin flux containing small amount of chlorine (The flux with a

maximum chlorine content of 0.2 Wt% is recommended.)

(2) Wave soldering

•Temperature 260C or below (molten solder temperature)

•Time 10 seconds or less

•Preheating conditions 120C or below (package surface temperature)

•Number of times One (Allowed to be dipped in solder including plastic mold portion.)

•Flux Rosin flux containing small amount of chlorine (The flux with a maximum chlorine

content of 0.2 Wt% is recommended.)

(3) Soldering by soldering iron

•Peak temperature (lead part temperature) 350C or below

•Time (each pins) 3 seconds or less

•Flux Rosin flux containing small amount of chlorine (The flux with a

maximum chlorine content of 0.2 Wt% is recommended.)

(a) Soldering of leads should be made at the point 1.5 to 2.0 mm from the root of the lead.

(b) Please be sure that the temperature of the package would not be heated over 100C.

.Caljfornja Eastern Laboratories P52561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

(4) Cautions

•Fluxes

Avoid removing the residual flux with freon-based and chlorine-based cleaning solvent.

2. Cautions regarding noise

Be aware that when voltage is applied suddenly between the photocoupler’s input and output or between

corrector-emitters at startup, the output transistor may enter the on state, even if the voltage is within the absolute

maximum ratings.

3. Measurement conditions of current transfer ratios (CTR), which differ according to photocoupler

Check the setting values before use, since the forward current conditions at CTR measurement differ according

to product.

When using products other than at the specified forward current, the characteristics curves may differ from the

standard curves due to CTR value variations or the like. Therefore, check the characteristics under the actual

operating conditions and thoroughly take variations or the like into consideration before use.

USAGE CAUTIONS

1. Protect against static electricity when handling.

2. Avoid storage at a high temperature and high humidity.

.Caljfornja Eastern Laboratories P32561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1

Data Sheet PN10505EJ05V0DS

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

SPECIFICATION OF VDE MARKS LICENSE DOCUMENT

Parameter

Symbol

Spec.

Unit

Climatic test class (IEC 60068-1/DIN EN 60068-1)

55/100/21

Dielectric strength

maximum operating isolation voltage

Test voltage (partial discharge test, procedure a for type test and random test)

Upr = 1.5  UIORM, Pd  5 pC

UIORM

Upr

890

1 335

Vpeak

Test voltage (partial discharge test, procedure b for all devices)

Upr = 1.875  UIORM, Pd  5 pC

Upr

1 669

Vpeak

Highest permissible overvoltage

UTR

8 000

Vpeak

Degree of pollution (DIN EN 60664-1 VDE0110 Part 1)

Comparative tracking index (IEC 60112/DIN EN 60112 (VDE 0303 Part 11))

CTI

175

Material group (DIN EN 60664-1 VDE0110 Part 1)

III a

Storage temperature range

Tstg

–55 to +150

C

Operating temperature range

–55 to +100

C

Isolation resistance, minimum value

VIO = 500 V dc at TA = 25C

VIO = 500 V dc at TA MAX. at least 100°C

Ris MIN.

1012

1011



Safety maximum ratings (maximum permissible in case of fault, see thermal

derating curve)

Package temperature

Current (input current IF, Psi = 0)

Power (output or total power dissipation)

Isolation resistance

VIO = 500 V dc at TA = Tsi

Tsi

Isi

Psi

Ris MIN.

175

400

700

109

°C



<R>

.Califomia Eastern Laboratories P52561B-1,P82561BL-1,P32561BL1-1,P32561BL2-1 E

PS2561B-1,PS2561BL-1,PS2561BL1-1,PS2561BL2-1

Caution GaAs Products

This product uses gallium arsenide (GaAs).

GaAs vapor and powder are hazardous to human health if inhaled or ingested, so please observe

the following points.

• Follow related laws and ordinances when disposing of the product. If there are no applicable laws

and/or ordinances, dispose of the product as recommended below.

1. Commission a disposal company able to (with a license to) collect, transport and dispose of

materials that contain arsenic and other such industrial waste materials.

2. Exclude the product from general industrial waste and household garbage, and ensure that the

product is controlled (as industrial waste subject to special control) up until final disposal.

• Do not burn, destroy, cut, crush, or chemically dissolve the product.

• Do not lick the product or in any way allow it to enter the mouth.

NOTICE

1. Descriptions of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and

application examples. You are fully responsible for the incorporation of these circuits, software, and information in the design of your equipment. California

Eastern Laboratories and Renesas Electronics assumes no responsibility for any losses incurred by you or third parties arising from the use of these circuits,

software, or information.

2. California Eastern Laboratories has used reasonable care in preparing the information included in this document, but California Eastern Laboratories does

not warrant that such information is error free. California Eastern Laboratories and Renesas Electronics assumes no liability whatsoever for any damages

incurred by you resulting from errors in or omissions from the information included herein.

3. California Eastern Laboratories and Renesas Electronics do not assume any liability for infringement of patents, copyrights, or other intellectual property

rights of third parties by or arising from the use of Renesas Electronics products or technical information described in this document. No license, express,

implied or otherwise, is granted hereby under any patents, copyrights or other intellectual property rights of California Eastern Laboratories or Renesas

Electronics or others.

4. You should not alter, modify, copy, or otherwise misappropriate any Renesas Electronics product, whether in whole or in part. California Eastern

Laboratories and Renesas Electronics assume no responsibility for any losses incurred by you or third parties arising from such alteration, modification, copy

or otherwise misappropriation of Renesas Electronics product.

5. Renesas Electronics products are classified according to the following two quality grades: “Standard” and “High Quality”. The recommended applications

for each Renesas Electronics product depends on the product’s quality grade, as indicated below. “Standard”: Computers; office equipment; communications

equipment; test and measurement equipment; audio and visual equipment; home electronic appliances; machine tools; personal electronic equipment; and

industrial robots etc. “High Quality”: Transportation equipment (automobiles, trains, ships, etc.); traffic control systems; anti-disaster systems; anti-crime

systems; and safety equipment etc. Renesas Electronics products are neither intended nor authorized for use in products or systems that may pose a direct

threat to human life or bodily injury (artificial life support devices or systems, surgical implantations etc.), or may cause serious property damages (nuclear

reactor control systems, military equipment etc.). You must check the quality grade of each Renesas Electronics product before using it in a particular

application. You may not use any Renesas Electronics product for any application for which it is not intended. California Eastern Laboratories and Renesas

Electronics shall not be in any way liable for any damages or losses incurred by you or third parties arising from the use of any Renesas Electronics product

for which the product is not intended by California Eastern Laboratories or Renesas Electronics.

6. You should use the Renesas Electronics products described in this document within the range specified by California Eastern Laboratories, especially with

respect to the maximum rating, operating supply voltage range, movement power voltage range, heat radiation characteristics, installation and other product

characteristics. California Eastern Laboratories shall have no liability for malfunctions or damages arising out of the use of Renesas Electronics products

beyond such specified ranges.

7. Although Renesas Electronics endeavors to improve the quality and reliability of its products, semiconductor products have specific characteristics such as

the occurrence of failure at a certain rate and malfunctions under certain use conditions. Further, Renesas Electronics products are not subject to radiation

resistance design. Please be sure to implement safety measures to guard them against the possibility of physical injury, and injury or damage caused by

fire in the event of the failure of a Renesas Electronics product, such as safety design for hardware and software including but not limited to redundancy,

fire control and malfunction prevention, appropriate treatment for aging degradation or any other appropriate measures. Because the evaluation of

microcomputer software alone is very difficult, please evaluate the safety of the final products or systems manufactured by you.

8. Please contact a California Eastern Laboratories sales office for details as to environmental matters such as the environmental compatibility of each Renesas

Electronics product. Please use Renesas Electronics products in compliance with all applicable laws and regulations that regulate the inclusion or use of

controlled substances, including without limitation, the EU RoHS Directive. California Eastern Laboratories and Renesas Electronics assume no liability for

damages or losses occurring as a result of your noncompliance with applicable laws and regulations.

9. Renesas Electronics products and technology may not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited

under any applicable domestic or foreign laws or regulations. You should not use Renesas Electronics products or technology described in this document

for any purpose relating to military applications or use by the military, including but not limited to the development of weapons of mass destruction. When

exporting the Renesas Electronics products or technology described in this document, you should comply with the applicable export control laws and

regulations and follow the procedures required by such laws and regulations.

10. It is the responsibility of the buyer or distributor of California Eastern Laboratories, who distributes, disposes of, or otherwise places the Renesas Electronics

product with a third party, to notify such third party in advance of the contents and conditions set forth in this document, California Eastern Laboratories and

Renesas Electronics assume no responsibility for any losses incurred by you or third parties as a result of unauthorized use of Renesas Electronics products.

11. This document may not be reproduced or duplicated in any form, in whole or in part, without prior written consent of California Eastern Laboratories.

12. Please contact a California Eastern Laboratories sales office if you have any questions regarding the information contained in this document or Renesas

Electronics products, or if you have any other inquiries.

NOTE 1: “Renesas Electronics” as used in this document means Renesas Electronics Corporation and also includes its majority-owned subsidiaries.

NOTE 2: “Renesas Electronics product(s)” means any product developed or manufactured by or for Renesas Electronics.

NOTE 3: Products and product information are subject to change without notice.

CEL Headquarters • 4590 Patrick Henry Drive, Santa Clara, CA 95054 • Phone (408) 919-2500 • www.cel.com

For a complete list of sales offices, representatives and distributors,

Please visit our website: www.cel.com/contactus
